產品規格

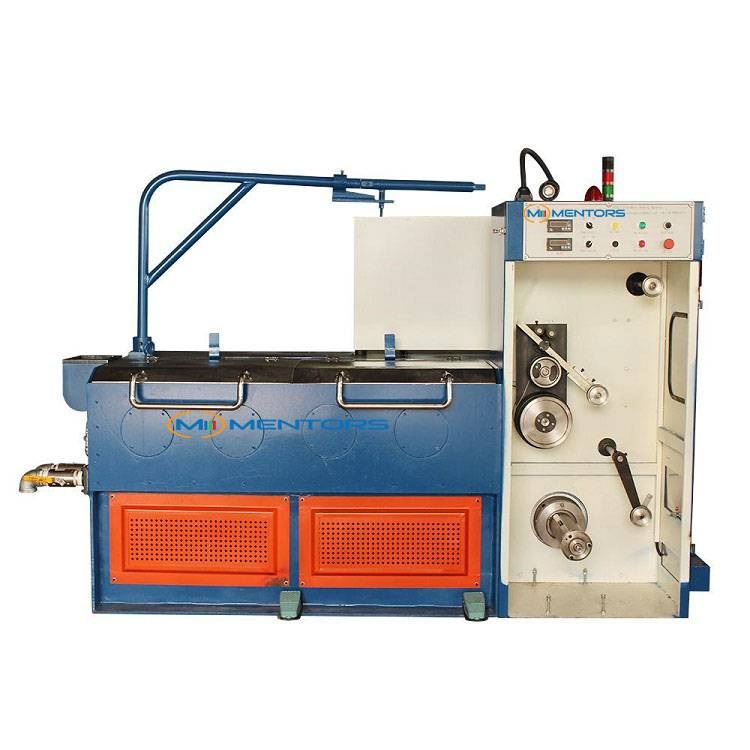

2.Main feature:
Adopting four pieces capstan, each one has 11 layers.Last one layer capstan used for fixed the speed. The loading and unloading of the wire drawing capstan is fixed in a conical pressing form, which is easy to install and unload.
(1)Wire quantity: 1 wire
(2)Max.Inlet wire: 0.45 mm, outlet wire: 0.04-0.15 mm
(3)Raw material: copper
(4)Capstan quantity: 4 PCS(horizontal)

3-Parameters:
Machine type    SY-24VD
Control system    Push Button
Inverter control    Dual Inverter control
Drawing dies No./Max.    24
Inlet diameter    0.12- 0.45mm
Outlet diameter    0.05- 0.15mm
Drawing line speed    2500m/min
Slip ratio of m/c    10.5%
Frame    Ironed cast
Capstan    Ceramic plasma capstan
Main motor    5.5KW
Spooler motor    2.2KW
Spool bobbin size    Φ250mm or or customized
Machine dimension    2000×1600×1900mm
Machine weight    1700KG

4-Advantage:
1.Ironed cast body is very strong.
2. Adopting world famous bearings and belt type transmission with low noise.
3. Drawing capstan of Super Fine Copper Wire Drawing Machine arrange it in horizontal type, which is easier for operating.
4. Double inverter can keep the outlet wire with stable tension and wire seldom break.
