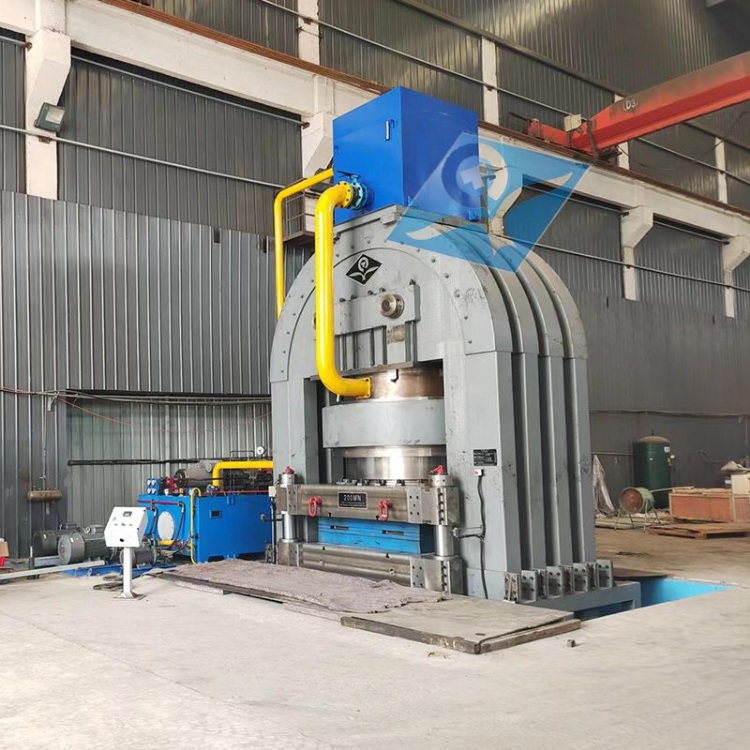

For the bipolar plates press, high rigidness of slides and working table and column guide design meet higher precision requirements of users. The application of bigger diameter prefill valve save time in slide going down and cylinder oil filling.

Features and advantages of bipolar plates press:

1. Energy saving: The energy consumption could be saved 20%~50% on the same pressing condition.

2. Long lifetime: Press frames and cylinders with pre-stressed steel wire winding structure make sure longer service time of press by eliminating stress concentration.

3. Strong pressure holding capacity: Seals of cylinder adopt expansion protection washer and imported gasket combined together to ensure stable and reliable function.

4. Easy maintenance: Long stroke return cylinders could realize main cylinder gaskets replacement in their place.

5. Forming assistant unit provide solution to lack of pressing in the middle of plate which is common problem for double cylinders press.

6. The compact structure of metal plates forming presses require less space occupation and transportation cost.

7. Application of cartridge valve manifold, variable piston pump group and booster ensure working cycle less than 45s.

Technical Parameters:

As a professional bipolar plates machine supplier, TPY will design and provide the suitable hydraulic presses according to user's technical requirements on following items:

● Working table size

● Stroke

● Maximum daylight

● Working speed
