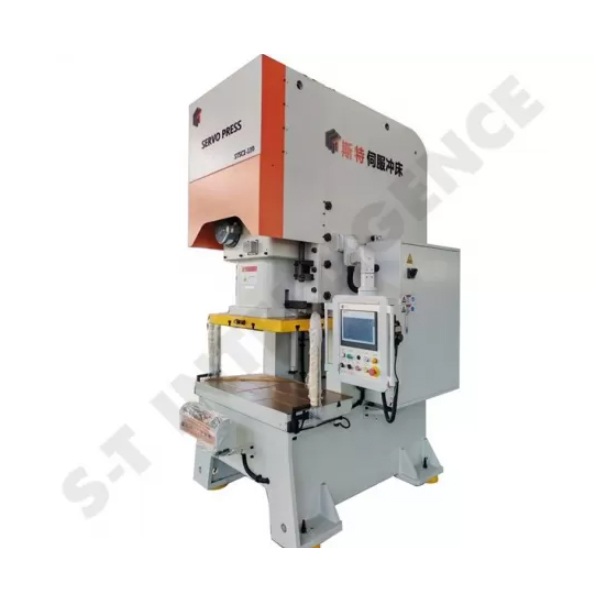

STSC1 Type Servo Single Point C-frame Press

Main Structure:

C-frame

Main Transmission Form:

Top drive, eccentric gear type single point servo press

Anti-Eccentric Load:

The eight-sided guide rail adjustment adopts a large point distance anti deviated load structure to ensure the precision of the slide during stamping.

Lubrication:

The main drive bearing part is lubricated with thin oil

Main Motor:

Low-speed high-torque water-cooled servo motor, ensuring reliable operation over extended periods

Operation Modes:

Multiple preset curve modes and free programming modes. Including Crankshaft Mode, Coining Mode, Drawing Mode, Forging Mode, Heating in-die Mode, Precision Blanking Mode, Pendulum Mode, Free Programming Mode.

C-frame Single Point Servo Press Advantages

Direct drive via servo motor, providing stamping energy in place of the flywheel for the press, eliminating clutches and brakes.

Fewer mechanical parts, less inertia of the transmission structure, lower noise level, simplified maintenance, and cheaper maintenance costs.

Precise control of the stamping process by arbitrarily setting and adjusting the servo motor speed.

Optimized stamping process curve by arbitrarily programming the operating speed, stroke position and pressure of the slide, greatly improving the accessibility and flexibility of production.

Full load operation while stamping at low slide speed (above 1 spm).

Reduced press working cycle time, enhanced production rate and production efficiency by increasing the speed of slide's return stroke.

Improvement of the accuracy and quality of stamped parts, minimization of the impact on the dies, extension of the dies' life time cycle, and reduction of the cost through utilization of low stamping stroke speed.

Efficient drive solution to reduce energy consumption.

Comprehensive energy management system, recycling of excess energy, and controlling instantaneous energy release during stamping.

Handwheel fine-tuning function, significantly reducing the time of tryout.

Same safety and logic control as mechanical press.

S-T Intelligence provides intelligent servo stamping solutions for customers in precision metal stamping parts for new energy vehicle power lithium batteries, hydrogen fuel cells, automotive cold extrusion, cold forging, high-strength steel sheet stamping, progressive and transfer stamping of automotive structural parts, etc.
