Straight bevel gear generator
產品型號：WMW MODUL type ZFTK 250 x 5
產品分類：工具機產業機械 / 齒輪切削機械 / 齒輪切削機械
產品特色

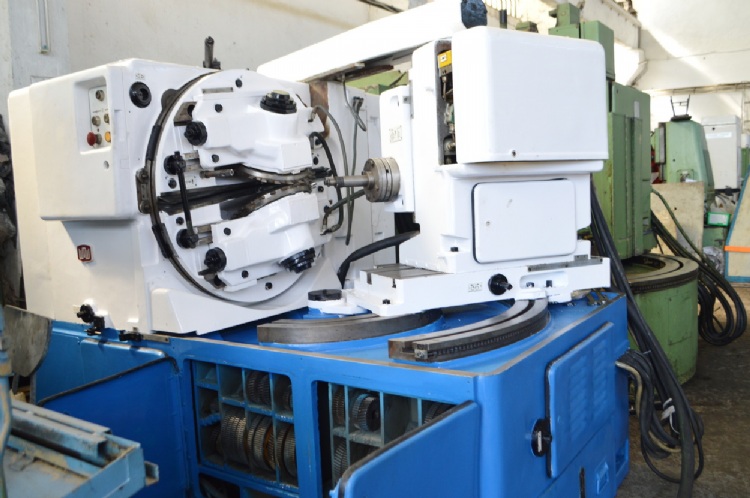

Straight bevel gear machine WMW MODUL ZFTK 250 x 5
The machine is designed to make straight bevel gears for agriculture and
construction machinery, machine tools, mining, aircraft and textile industry.
The machine can be used for single part production as well for series production.
Producer: WMW MODUL/Germany
Main technical details:
Max. diameter of the gear wheel: 250 mm
Max. module: 7 mm
Min/max. number of teeth: 6/100
Max. gear ratio: 1:6
Max. gear width: 40 mm
Cutting speed: 35,5 - 71 rot/min
Net weight of the machine: 6000 kg
Accessories: change gears.
Location of the machine: our warehouse in Romania
