• SDVC34-MR Variable Frequency Intelligent Controller for Vibratory Feeder

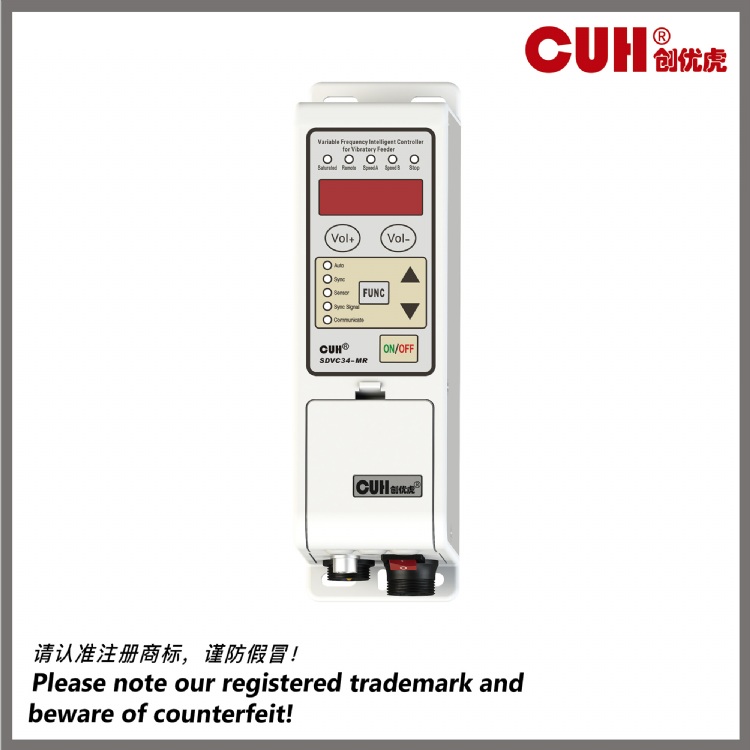

SDVC34-MR Variable Frequency Intelligent Controller for Vibratory Feeder



產品型號：SDVC34-MR

產品分類：自動化設備/產業機械 / 其他產業機械 / 產業機械零配件



立即線上詢問





產品特色



Automatic Constant Feed Speed Control: Automatic output voltage adjustment in real-time to ensure constant preset feed speed regardless of change in the workpieces.

Automatic Frequency Adjustment: Automatic output frequency adjustment in real-time to make sure the load is always working at its resonant frequency

Automatic Resonant Frequency Search: Search out and output the resonant frequency of the load. other related parameters are also set automatically

Counting: Count the number of the workpieces. The controller will slow or stop when counting up to the preset value. (available on SDVC34MRJ

Rs485 Communication: All parameters of the controller can be adjusted via R485

Automatic Switch Sensor Type Recognition: The controller can recognize and adapt to both PNP and NPN-type switch sensors

Sync Output: Sync the output waveform of the slave controller with that of themaster controller to the same frequency and phase to avoid beat effect

Overvoltage Protection: If input voltage is too high, power supply of thecontroller will be shutdown automatically to protect itself

Digital Overheat Protection: If internal temperature of the controller gets too high, the controller will stop its output to protect itself

Overcurrent Protection: If output current exceeds its rated valuehe controller will stop its output to protect itself and the load

Restorable Short Circuit Protection: If output of the controller is short-circuited, the controller will shut down its production to protect itself

But the fuse inside will not be blown. So when there is no short circuit at the cputput side, the controller will work again after power on
