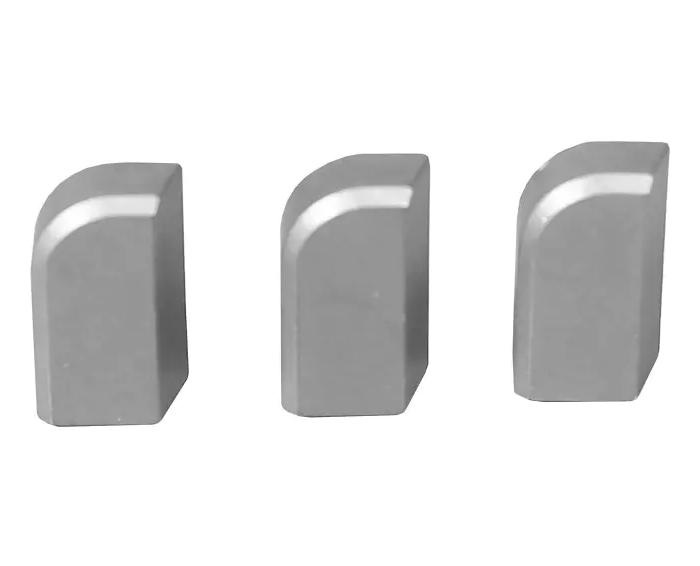

Type A Heavy-Duty Tungsten Carbide Brazed Cutting Inserts with Superior Strength for Industrial Machining & Tooling
產品型號：0102
產品特色
Precision Engineering: Manufactured to exacting standards, ensuring consistent performance and high-precision results.
Blank Surface: Ideal for seamless integration into a variety of tooling setups.
產品規格
Type A Tungsten Carbide Brazed Tips represent the pinnacle of precision engineering and industrial durability. Designed for a diverse range of machining applications, these tips are crafted from premium tungsten carbide, delivering exceptional strength, wear resistance, and reliability.
Material and Types
- Material: High-grade tungsten carbide ensures unparalleled strength and resilience, ideal for demanding machining tasks.
- Available Types: A5, A6, A8, A10, A12, A16, A20, A25, A32, A40, and A50.
Each type is tailored to meet specific machining requirements, offering versatility and customization for various industrial applications.
Technical Specifications
| Type | Length (L) | Thickness (t) | Width (s) | Corner Radius (r) |
|---|---|---|---|---|
| A5 | 5.0 mm | 3.0 mm | 2.0 mm | 2.0 mm |
| A6 | 6.0 mm | 4.0 mm | 2.5 mm | 2.5 mm |
| A8 | 8.0 mm | 5.0 mm | 3.0 mm | 3.0 mm |
| A10 | 10.0 mm | 6.0 mm | 4.0 mm | 4.0 mm |
| A12 | 12.0 mm | 8.0 mm | 5.0 mm | 5.0 mm |
| A16 | 16.0 mm | 10.0 mm | 6.0 mm | 6.0 mm |
| A20 | 20.0 mm | 12.0 mm | 7.0 mm | 7.0 mm |
| A25 | 25.0 mm | 14.0 mm | 8.0 mm | 8.0 mm |
| A32 | 32.0 mm | 18.0 mm | 10.0 mm | 10.0 mm |
| A40 | 40.0 mm | 22.0 mm | 12.0 mm | 12.0 mm |
| A50 | 50.0 mm | 25.0 mm | 14.0 mm | 14.0 mm |
Grades
Available grades include P10, P20, P30, K10, K20, K30, M20, YG8, YG6, YG6X, YW1, YW2, YT5, and YT15. These grades ensure compatibility with a wide range of materials and machining tasks, from general-purpose cutting to high-precision applications.
Key Features
- Precision Engineering: Manufactured to exacting standards, ensuring consistent performance and high-precision results.
- Blank Surface: Ideal for seamless integration into a variety of tooling setups.
- Durability and Longevity: High resistance to wear, thermal degradation, and impact for extended tool life.
- Versatility: Suitable for turning tools, threading tools, and lathe tools across diverse industries.
- Performance Enhancement: Superior cutting properties, excellent heat dissipation, and effective chip control optimize operational efficiency.
Applications
- Machining: Turning, threading, milling, and lathe operations.
- Metalworking: Cutting and shaping various materials, including steel, cast iron, and non-ferrous metals.
- Woodworking: Suitable for precision carving and high-durability applications.
Quality Assurance
Each Type A Tungsten Carbide Brazed Tip undergoes stringent testing to meet the highest quality standards, ensuring reliability and consistent performance.
Take your machining operations to the next level with Type A Tungsten Carbide Brazed Tipsa trusted choice for precision, durability, and versatility.
