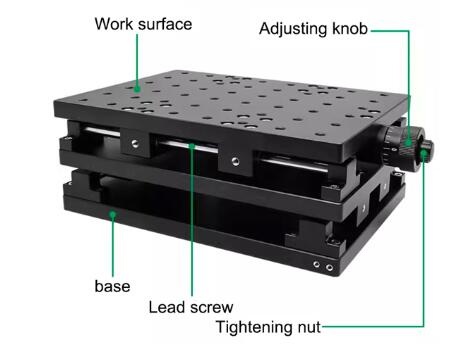

Manual Two Axis displacement Stage XY Axis regulate Platform
產品型號：PT-SD711
產品特色
Product details:
Manual Two Axis displacement Stage XY Axis regulate Platform PT-SD711.
Product Features:
Aluminum alloy material，XY Axis displacement
Simple operation，stable performant
Multi-Scenario applications
產品規格
Specification:
PT-SD711
Product parameter：
|
Platform Size(mm) |
210*150*75 |
|
Countertop |
M6 |
|
Threaded hole(mm) |
25*25 |
|
Stroke Length(mm) |
70x50 |
|
Dimensions of installation(mm) |
125*100 |
|
Mode of operation |
Manual |
|
Net weight |
4KG |
PT-SD712、PT-SD713
Product parameter：
| Model number | PT-SD712 | PT-SD713 |
| Mesa size | 300*220mm | 300*300mm |
| journey | 150*90mm | 150*150mm |
| Horizontal load resistance | 30kg | 30kg |
| Materials | Aluminium alloy | Aluminium alloy |
| Minimum scale | 0.1mm | 0.1mm |
| Minimum displacement | 0.02mm | 0.02mm |
| Parallelism plus or minus | 0.1mm | 0.1mm |
| weight | 7.7kg | 9.8kg |
