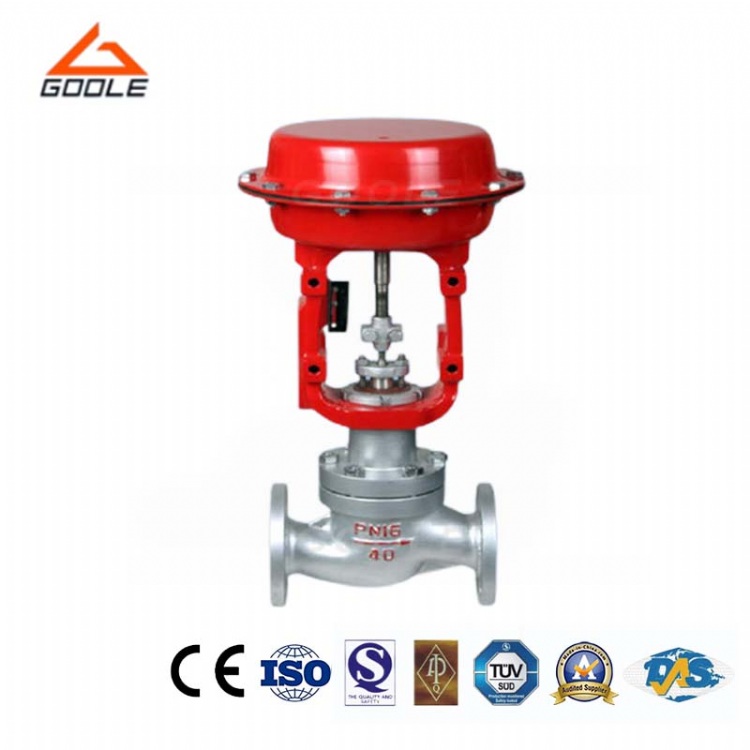

CV3000 Top Guided Pneumatic Control Valve (GAHTS)
產品型號：CV3000 Series.
產品特色
Basic Info
Model NO.
GAHTS
Category
Control Valve
Leakage Standard
Class IV or Class VI
Flow Characteristic
Linear or Equal Percentage
Actuator
Pneunamic
Connecting Type
Flanged, Buttwelded
Medium Temperature
- 20 Deg C to 560 Deg C
Usage
Flow Control
Size
Dn15-Dn300
Trademark
Goole or others
Transport Package
Plywood Case
Specification
ISO 9001
Origin
Wenzhou
HS Code
8481804090
Descriptions:
Certification: CE, ISO9001
Media: Gas, Oil, Water
Standard: Standard
Power: Pneumatic
Material: Wcb, S.S 304, Ss316, Ss304L, Ss316L
Type: Standard Type, Regulating Cutting Type, Bellow Sea
1, To achieve greater CV value and wider adjustable ratio
S shaped structure body is generated from the fluid analysis in a unique, can be suppressed by flow path shape complex and eddy current as well as flow path suddenly expand caused by complex and irregular flow phenomenon, which brings the medium flow, high efficiency in addition, guide wing cage type valve can be unstable fluid efficiently sleeve around the into the sleeve, due to these features, the CV3000 series valve with the original V series valve compared with a 30% increase in CV, and the adjustable ratio was enlarged from 30:1 to 50:1 (add attachments of up to 75:1), so it can be used to control a wide range of load changes.
2,High precision flow characteristics can bring the "ideal" flow
Adopting high precision flow characteristic curve as the standard technical parameters, to achieve the "ideal" flow theory. The process gain stability; computer simulation, valve opening degree of process control conditions, can realize flexible control.
3,Small volume and light weight
CV3000 series valve due to film the spring type small lose simple mechanical structure of the power of the executive body, thus successfully greatly reduced height, realize the miniaturization, according to multi spring diaphragm actuator and S shaped valve, control valve of CV3000 type and V type series valve compared can achieve 30% - 40% a small, light, efficient use of space has contributed to the.
4,Full specifications, wide use
CV3000 series valve has from the vacuum valve to the valve, varied from low to high temperature control. Widely used in petroleum refining, petrochemical, chemical fertilizer, chemical, steel, metallurgy, papermaking, power, light industry and other automation control process.
3. CV3000 Series Top Guided Pneumatic Control Valve (GAHTS) Main Parts Material:
Valve Body/Cap: S.S304.
Valve Core/ Seat: S.S304, Stellite.
Packing: PTFE.
Gasket:: Graphite.
Membrane Cover: A3.
Spring: 60Si2Mn.
Valve Stem: S.S 304.
Nut/Bolt:: S.S 304.
4. CV3000 Series Top Guided Pneumatic Control Valve (GAHTS) Main Dimensions:
