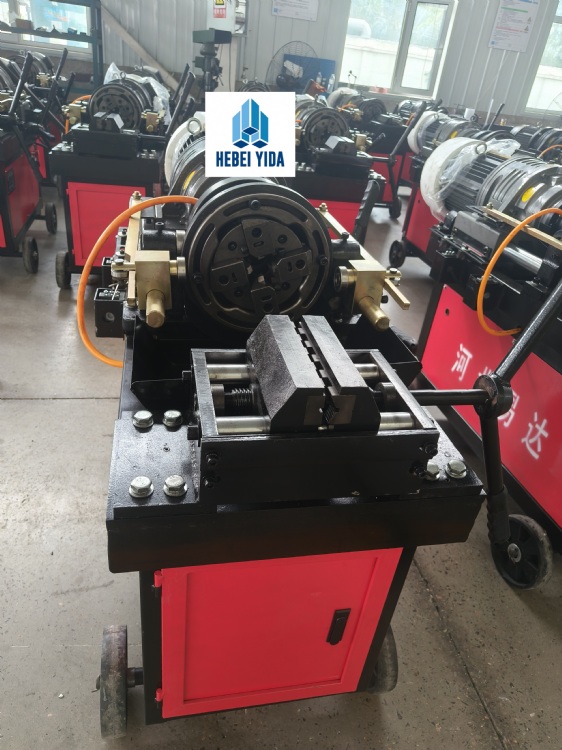

Rib Peeling machine
產品型號：BZGL-40B3
產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色
BGZL-40B3 steel bar straight screw thread processing rib peeling machine is the exclusive use rib peeling knurling machine for the straight screw thread connecting. It is mainly used in the processing of the top of the structural steel bar.
Rebar Coupler 16mm-40mm
產品規格
1. BGZL-40B3 steel bar rib peeling and threading machine
Whatsapp:+8613393238383
1). the technical parameter for BGZL-40B3 steel bar rib peeling and threading machine
|
The Machine Model |
BGZL-40B3 Machine |
|||
|
Rolling Roller model |
E |
F |
G |
H |
|
Thread Pitch (mm) |
2.0 |
2.5 |
3.0 |
3.0 |
|
Steel Bar Standard |
16 |
18、20、22、25 |
28、32 |
36、40 |
|
The Whole Machine Weight |
535Kg |
|||
|
The Power of Main Electric Motor |
5.5KW |
|||
|
The Power Of Water Pump Electric Motor |
0.75KW |
|||
|
The Work Voltage |
380V 50Hz 3Phase |
|||
|
The Output Rotate Speed of Reducer |
62 |
|||
|
Dimension(mm) |
1000╳180╳1000mm |
|||
2).The Capacity and Usage
BGZL-40B3 steel bar straight screw thread processing rib peeling machine is the exclusive use rib peeling knurling machine for the straight screw thread connecting. It is mainly used in the processing of the top of the structural steel bar.
2．Rebar Coupler
The splicing couplers model is divided into 9 categories according to the Rebar Coupler. (Unit: mm) 16mm-40mm
|
Size(mm) |
O D±0.5（mm） |
Thread（mm） |
L±0.5 (mm) |
Pitch |
Rib peeling coupler weight/pc (kg) |
Thread Angle |
|
Φ16 |
25 |
M16.5 |
40 |
2.0 |
0.111 |
60 Degree |
|
Φ18 |
28 |
M18.5 |
45 |
2.5 |
0.136 |
|
|
Φ20 |
31 |
M20.5 |
50 |
0.175 |
||
|
Φ22 |
33 |
M22.5 |
55 |
0.203 |
||
|
Φ25 |
37 |
M25.5 |
60 |
0.266 |
||
|
Φ28 |
41 |
M28.6 |
70 |
3.0 |
0.375 |
|
|
Φ32 |
47 |
M32.6 |
75 |
0.533 |
||
|
Φ36 |
54 |
M36.5 |
85 |
0.828 |
||
|
Φ40 |
59 |
M40.2 |
95 |
1.085 |
3).The material of the splicing coupler
The material of the splicing coupler is constructional quality steel of No.45 steel.
Working Principle:
1)Slice up the end of the rebar;
2)Peel the rib of the end of rebar with specialty rib peeling parallel thread rolling machine;
3)Connect the two ends of rebar with rib peeling thread coupler;
