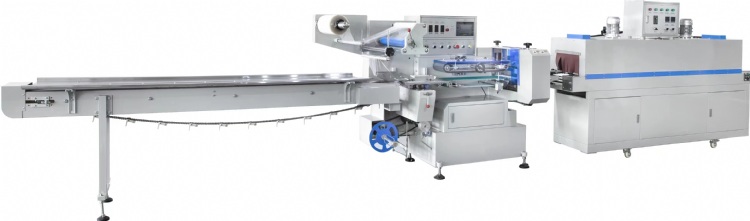

Horizontal Flow Shrink Wrapping Machine
產品型號：590
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 收縮包裝機
產品特色
Servo Control Horizontal Flow Shrink Packaging Machine(Pillow-Type) adopts the technology of Japan and uses all the imported electrical elements. The machine is simple in operation, reliable in quality and stable in performance. With variable frequency modulation number and stepless variable speeds. The control set of complete machine is completed by PLC, reducing the fault point. High efficient double temperature zone in heat shrink furnace, non-polar speed regulation and automatic temperature control. Efficient hot air circulation for the quality of contraction. Widely use for the packaging in groups of food, drugs and beverages, bowl, milk tea, wall paper, coaches, filters, electrical switches, preservation films, garbage bags, various materials, industrial parts and packaging of daily cosmetics.
產品規格
|
Max Film size |
≤590mm |
||||||
|
Blade Model 封刀型号 |
120 |
150 |
180 |
210 |
240 |
||
|
Packing size 包装尺寸 |
L ：Bag length |
L:60mm-320mm |
L:100mm-450mm |
L:150mm-530mm |
L:180mm-600mm |
L:210mm-650mm |
|
|
|
W：width |
w:10mm-200mm |
w:10mm-200mm |
w:10mm-200mm |
w:10mm-200mm |
w:10mm-250mm |
|
|
|
H：height |
H:5mm-35mm |
H:35mm-70mm |
H:65mm-100mm |
H:80mm-130mm |
H:100mm-150mm |
|
|
Packing speed 包装速度 |
30-150(pack / min) |
30-150(pack / min) |
30-135(pack / min)） |
30-100(pack / min) |
30-80(pack / min) |
||
|
Film type 膜类型 |
PVC;POF |
||||||
|
Power consumption 功率 |
Packaging machine：4.75KW；Shrinking tunnel：13.5KW |
||||||
|
Power supply 输出电压 |
Packaging machine:220V,50HZ/60HZ;Shrinking tunnel:380V，50HZ/60HZ |
||||||
|
Envelop dimensions 外形尺寸 |
4800x1170x1500mm |
||||||
|
Dimensions：2600x600x1700mm |
Furnace channel size：2300*250*200mm |
||||||
|
Weight 重量 |
Packaging machine：760KG |
Shrinking machine：380KG |
|||||
