5 BBL 7 BBL 10 BBL 20BBL Stainless Steel Jacketed Conical Beer Fermenter for sale
產品型號:5 BBL 7 BBL 10 BBL 20BBL
產品分類:包裝印刷暨食品及製藥機械 / 食品及製藥機械 / 釀造整廠設備
產品特色

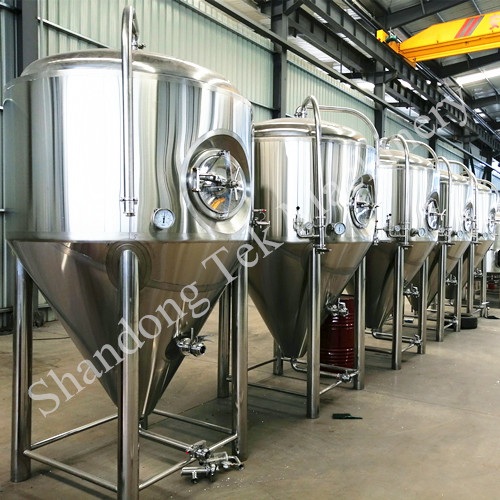

TEKBREW Beer Fermentation Tank
1. Tek Fermenting equipment is widely used for Homebrew, Bar, Brewpub, Restaurant, Microbrewery and small Craft Beer Brewing company,
Capacity from 50L to 200HL.
Type: Single layer, Cooling jacketed, Insulated double layer, Open top fermenter
2. The fermentation tank is complete new, unused and high quality configurations.
3. The tank is completely made of SUS304, 316 or red copper as requirement.
4. 100% TIG welding with pure argon gas shield.
5. Interior Finish: 0.4~0.6μm/Mirror Polishing/pickling and passivating
6. The fermenter is cylinder conical tank type with cooling jackets
7. The tank dimension can be adjustable according to the room space..
產品規格
Beer Fermenting Vessel Unitanks
Total capacity: with 25% headspace
Dome top and cone bottom, bottom cone, 60 degree
Interior Shell: SUS304, T 3.0mm;
Exterior Shell: SUS304, T 2.0mm 2B
Insulation: PU, T 80-100mm
100% TIG welding with pure argon gas shield
Interior Finish: to 0.4~0.6μm/ Mirror polishing/pickling and passivating
Cooling Jacket: On both cone and cylinder parts , can be separate cooling zones
Top mounted manhole/Side manhole
Relief/Vacuum valve/PVRV Valve
Dry hopping port
Thermometer Thermowell with high accuracy temperature sensor: PT100
Beer Sample valve
Bung apparatus/Release Valve with pressure gauge
Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.
Rotating racking arm on cone with butterfly valve
Drainage with butterfly valve
CIP arm with 360° spraying ball
Tank complete with fittings, valves, and all parts.
Optional:
Level Tube
CO2 Carbonation Stone
Copper Shell
Pressurized Dry Hop feeder
Other requirements
Dimension design
Perlick style sample valve
Additional blow off pipework.
