aluminum powder hydraulic press briquetting scrap metal press compactor machine
產品型號：Y83-250
產品分類：自動化設備/產業機械 / 其他產業機械 / 金屬冶煉加工設備
產品特色

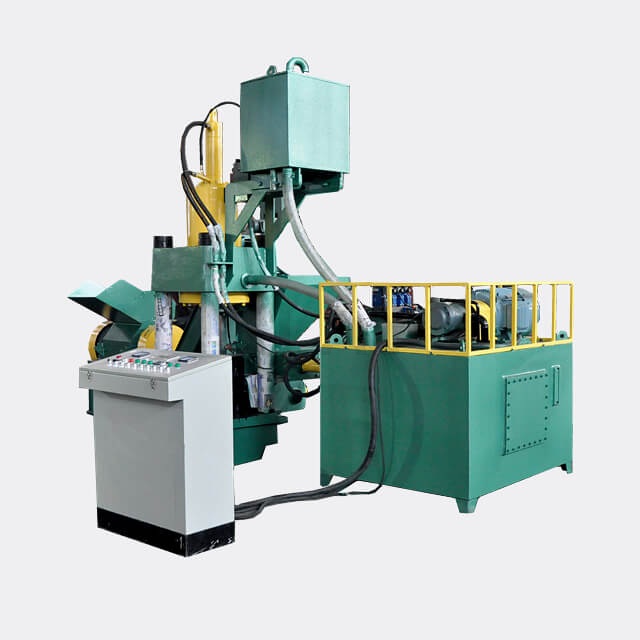

Y83 series hydraulic metal chip briquetting press machine
Huabao Y83 series briquetting press machine has two types: Y83 series vertical type & Y83W series horizontal type, there are 7 standard models available and the customized design service is also available under the customer’s specific requirements.
Y83 series vertical type is four columns structure while the Y83W series horizontal type has 3 columns & 4 columns structure optional, all models are available to equip conveying system to be integrated into fully automated production lines.
Huabao Y83 series briquetting press is applied to compress ferrous & non-ferrous chips, powder, shavings, swarf, turnings etc (steel, cast iron, copper, aluminum, titanium etc) into high density cylindrical / square briquettes to reduce burning loss in smelting furnace, decrease the storage space and transportation cost as well.
產品規格
|
Model |
Briquette diameter (mm) |
Speed (briquette /minute ) |
Motor (kw) |
Briquette density (g/cm3) |
|
Y83-150 |
60~90 |
5~6 |
18.5 |
Aluminum≦2.5 |
|
Y83-250 |
90~110 |
5~6 |
22 |
Aluminum≦2.5 |
|
Y83-315 |
100~110 |
3~5 |
30 |
Steel,cast iron≦5.5 |
|
Y83-360 |
100~130 |
3~5 |
30 |
Steel,cast iron≦5.5
|
|
Y83-500 |
120~160 |
3~5 |
30×2 |
Brass ,copper≦7.0 |
|
Y83-630 |
120~200 |
3~5 |
37×2 |
Brass,copper ≦7.0 |
