產品規格

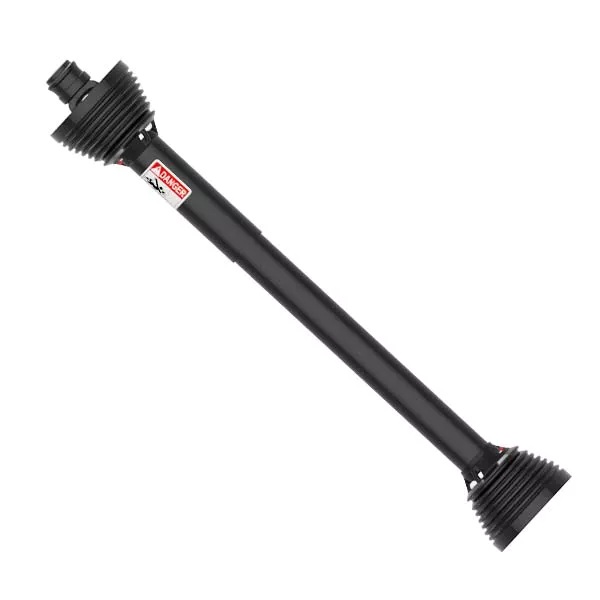

NA 14 Series PTO Jocket, shaft, and yoke to meet your requirements
The Centerline from the End of the Shaft: 35-2/3 in.
The PTO shaft drive yoke is 1 in. 1-1/8 inch. Solid rectangle bore to allow for ease of operation
The tractor pto shaft  yoke runs at 58 HP/43 Kilowatts
Weight: 12.7 lb/6 kilograms
Extension size: 25-5/8 in.

PTO Shaft Parts
#14 2000 Parts PTO Series Driveline Parts
Part Number    Cup
Diameter    Length
(B)    Snap
Ring    Series    Type
   1-2075    1.125    2.625    outside    14
#14 /2000 series Square and Rectangular parts
Bar Yoke #    Solid Shaft    OD Spec    Square Sleeve    Tube Yoke
Shield    Shield Bearing    Length    Shield Bearing ID
69-1248    56-2000    48    2.050
900-2548    921-1200    48    2.050
#14 2001 Series Splined Parts
Bar Yoke #    Solid Shaft    OD Spec    Square Sleeve    Tube Yoke
Shield    Shield Bearing    Length    Shield Bearing ID
69-1248    56-2000    48    2.050
900-2548    921-1200    48    2.050
#14/2000 Series Quick-Connect Yokes
Part Number    Diameter    No of Splines    C-E Length
100-1421    1.375    21
100-1406    1.375    6
14 Hex QDs of the 2000 Series
102-1418    1.125
#14 /2000 series Clamp Yokes
14/2000 Splined Clamp Yokes
Part Number    Diameter    No of Splines    Notes
14031-1103    1.00    15    Splined
14 / 2000 Round Clamp Yokes
Part Number    Diameter    Keyway    Notes
14021-2088    1.000    .250"    round
14021-1111    1.188"    .188"    round
14021-1387    1.250"    .250"    round
14 2000 Hex Clamp Yokes
#14 / 2000 Series Straight Bores
14 /2000 Series Round Bores

Part Number    Bore    Key    (c-e) Length
800-1416    1.00    .250    3.875
800-1417    1.062    .250    3.875
800-1418    1.125    .250 / .312    3.875
800-1419    1.188    .250 / .312    3.875
800-1420    1.250    .250 / .312    3.875
800-1422    1.375    .312    3.875
800-1424    1.500    .375    3.875
14 2000 Series Splined Bores

Part Number    Diameter    Splines
801-1418    1.125    6
801-1420    1.250    6
801-1406    1.375    6
801-1421    1.375    21
14 /2000 Series Hex Bores

Part Number    Diameter    c-e Length
805-1418    1.125    3.875
805-1420    1.250    3.875
#14 /2000 series Yokes
14 2000 Series H Yokes
Part Number    Length
14061-1588    1.875
14 Flanges from the 2000 Series Yokes
14 / 2000 Series Shear Bolt Yokes
Part Number    Diameter    No of Splines
104-1421    1.375    21
104-1406    1.375    6
#14 (CAT 3) 50-degree Constant Velocity
Tube Yoke (2.0x.083)    H Yoke
350-1400    555-1400
#14 (CAT 3) 50-degree CV End Yokes
Part Number    Bore    Type
857-1420    1.250-.250 round    clamp
850-1420    1.250-.250 round    Straight round
850-1422    1.375-.312 round    Straight round
150-1421    1.375-21 spline    QD collar
150-1406    1.375-6 spline    QD collar
#Torqmaster Clutches
Clutch Hubs    Friction Paks
14 2000 ToqMaster Clutch Hubs

Part Number        Model    Bore    Connection    Type
818-1421        Torqmaster    1.375-21    clamp    combination
818-1406        Torqmaster    1.375-6    clamp    combination
817-1421        Torqmaster    1.375-21    clamp    combination
817-1406        Torqmaster    1.375-6    clamp    combination
817-1420        Torqmaster    1.75-20    clamp    combination
TorqMaster Clutch packs

Part Number        Model    Outside Diameter    Torque Setting    Type
57112000        Torqmaster    7.00    12,000 pounds    combination
57012000        TorqMaster    7.00    12,000 pounds friction is the only thing that matters.
57115000        TorqMaster    7.00    15,000 pounds    combination
57015000        TorqMaster    7.00    15,000 pounds friction and not much else.
571-9000        TorqMaster    7.00    9,900 lbs    combination
570-9000        TorqMaster    7.00    9000 lbs in weight    only friction
59110000        TorqMaster    9.36    10,000 pounds    combination
59010000        TorqMaster    9.36    10,000 pounds    Only friction
59115000        TorqMaster    9.36    15,000 pounds    combination
59015000        TorqMaster    9.36    15,000 pounds friction and not much else.
59118000        TorqMaster    9.36    18,000 pounds    combination
59018000        TorqMaster    9.36    18,000 pounds    Only friction
PTO Shaft as well as Agricultural Gearbox
The agricultural gearbox and the PTO shaft two components collaborate to transfer power mechanically between the farm tractor. PTO shafts PTO shaft converts the engine's energy to hydraulic pressure. It allows the tractor to lift huge loads. If it's functioning properly it lowers the chance of damaging the tractor and the person operating it. If used properly it can be a crucial part of a tractor however, it is also susceptible to becoming inoperable. When selecting the best agriculture gearbox take into consideration the durability and the mechanism of the item and the material used. A sturdy gearbox will last for years and will avoid the need for frequent replacements. A good agricultural gearbox is durable for a long time You don't need to replace it over and over. It can be expensive therefore, you must consider your needs when buying an agricultural gearbox or PTO shaft. HZPT provides PTO shafts, agricultural gearboxes, and more for sale at a cheap cost! Contact us today if you are interested!
