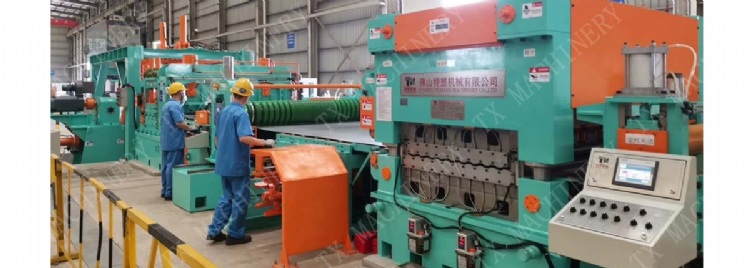

Flying shear cut to length line
產品型號：7
產品分類：自動化設備/產業機械 / 自動化設備 / 自動矯正機
產品特色
The purpose that TX developed the type of rotary flying shear line is to achieve better flatness accuracy and continuous production, and reduced required space.
TX’s flying shear cut to length line can be applied for processing material like HR(hot-rolled steel), high tensile steel, pre-painted steel, stainless steel, aluminium and etc. The thickness range covers from 0.1 to 25mm. Line speed is 50m/min max.
Commonly the flying shear cross cutting line is composed of decoiler, pinch roll & straightening unit, leveling unit, length measuring unit, flying shear, stacking unit(additional equipment like side trimmer, PVC film applicator, Crop shear…can be incorporated).
TX’s flying shear is applicable for light gauge, medium gauge, and heavy gauge cut-to-length line.
