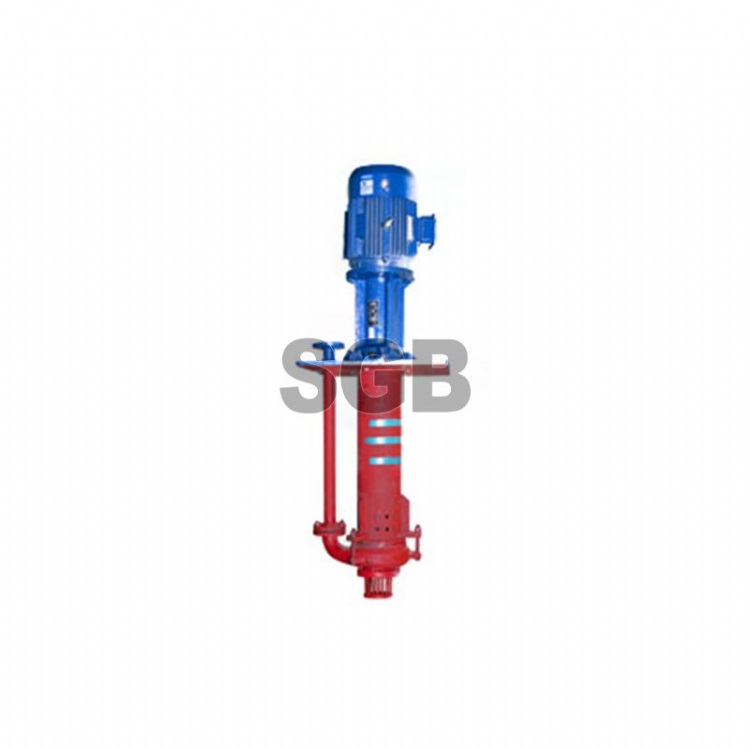

TL Series Vertical Pit Desulphurization Pump
產品型號：TL Series Vertical Pit Desulphurization Pump
產品特色
TL Series Vertical Pit Desulphurization Pump
產品規格
TL Series Vertical Pit Desulphurization Pump
Product Description
- Single stage, single suction, vertical centrifugal pump
- Wet parts such as casing, impeller, liner plate in anti-abrasion and corrosion-resistant high chrome cast iron alloy.
- For fluid of high concentration, inlet agitator is designed
-According to the depth of the pit, suction pipe can be added to the pump inlet.
- Hydraulic optimization design and stable operation
Technical Specifications
Performance and Main Technical Datas of TL Desulphurizations Pumps
|
Type |
Allowable |
Clear water |
Particle max. Size handled (mm) |
Pump weight (kg) |
||||
|
Q Capacity (m3/h) |
H Head (m) |
n Speed (r/min) |
Max.eff. (%) |
(NPSH)r (m) |
||||
|
150TL-A35 |
30 |
99-364 |
3.0-17.9 |
490-980 |
69.0 |
/ |
15 |
712 |
|
100TL-A34 |
45 |
74-293 |
5.5-36.8 |
700-1480 |
65.8 |
/ |
14 |
502 |
|
80TL-A45 |
110 |
59-286 |
12.5-81.6 |
700-1490 |
58.4 |
/ |
15 |
785 |
|
80TL-A36 |
45 |
50-201 |
7.3-45.5 |
700-1480 |
58.2 |
/ |
12 |
645 |
|
65TL-A40 |
45 |
30.2-142.8 |
10.2-62.6 |
700-1480 |
50.0 |
/ |
12 |
658 |
|
65TL-A30 |
18.5 |
18-98 |
5.9-34.7 |
700-1470 |
53.7 |
/ |
8 |
436 |
|
50TL-A45 |
55 |
21.9-117.3 |
10.4-78.4 |
700-1480 |
39.9 |
/ |
9.5 |
778 |
|
50TL-B40 |
30 |
15-65 |
8.6-58.3 |
700-1470 |
34.1 |
/ |
9 |
502 |
|
50TL-A35 |
22 |
19-87 |
6.8-45.3 |
700-1470 |
48.1 |
/ |
15 |
498 |
|
40TL-A35 |
18.5 |
9.4-47.6 |
7.2-43.9 |
700-1470 |
38.7 |
/ |
7 |
524 |
|
40TL-B25 |
5.5 |
4.9-22.9 |
3.9-21.5 |
700-1440 |
37.6 |
/ |
8 |
225 |
|
40TL-A21 |
4 |
4.6-25.9 |
3.3-17.0 |
700-1440 |
44.6 |
/ |
10 |
210 |
|
25TL-A15 |
5.5 |
4.3-19.3 |
3.9-30.8 |
1390-2900 |
29.8 |
/ |
8 |
195 |
