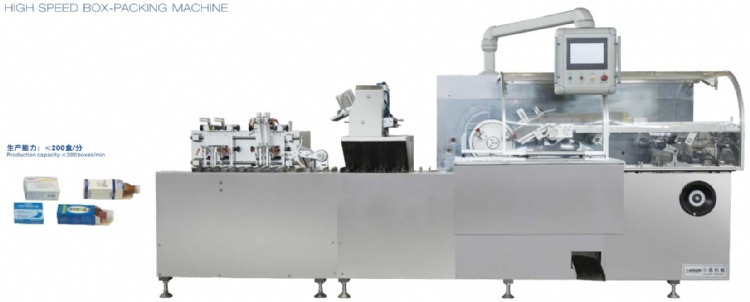

ZH-200 Cartoning machine
產品型號：ZH-200 Cartoning machine
產品分類：包裝印刷暨食品及製藥機械 / 食品及製藥機械 / 製藥機械
產品特色
ZH-200 Cartoning machine
產品規格
Canaan designs and manufactures Cartoning Machines for a wide range of industries, including the pharmaceutical, nutraceutical, medical device, food, beverage, personal care, cosmetic, household and industrial markets. Each cartoner offers a compact footprint to save space in your facility, while still delivering the great assets we are known for - such as open balcony design, rugged durability, quick changeover and low maintenance.
Canaan Cartoning Machine Main technical parameters
|
Capacity(cycle/min) |
60-200 box / min |
|
|
Finished product rate(mm) |
≧99% |
|
|
Wasteful product rejection rate(mm) |
100% |
|
|
Packing material |
Box dimension(LxWxH) |
(65-125)x(40-78)x(12-65) |
|
Cardboard of box required |
250-300 |
|
|
Leaflet dimension: (LxW): |
(80-300)x(70-210) (70-210)x(20-40) |
|
|
Leaflet paper required |
50-70 |
|
|
Clean compressed air(pressure) |
0.6-0.8MPa |
|
|
Air consumption |
≧0.3 m3/min |
|
