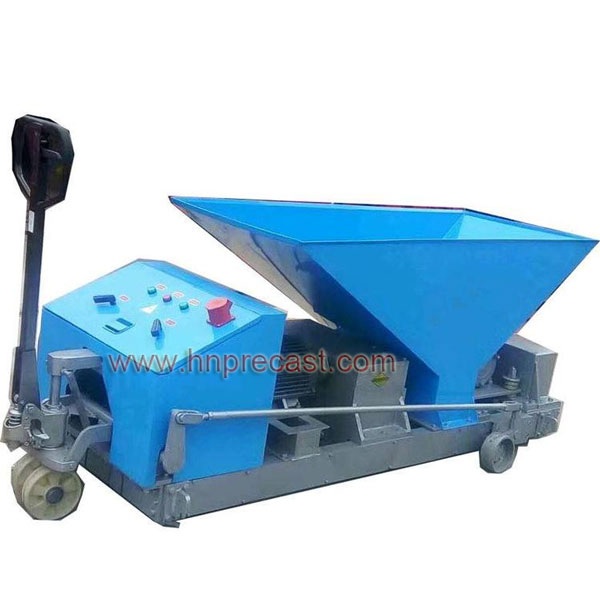

Precast lightweight concrete hollow core wall panel extruder machine
產品型號：JQT90×600;JQT100×600;JQT120×600；
產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色
The concrete wall panel machine work on the principle of extrusion. The extrusion process involves feeding dry mix concrete onto rotation screws by means of a moving electric hopper. The screws force the concrete through shaping plates and out of the rear of the extrusion machine, while holes are forced into the concrete panels by circular mandrels, trailing behind the screw augers. During the process, the extrusion machine is propelled by the backpressure of the concrete and together with various vibrating plates. It produces an extremely well-compacted concrete hollow core wall panel.
產品規格
The wall panel extruder is a special machine used to manufacture non-load-bearing concrete wall panels. The finished wall panels are mainly for the application of interior walls or exterior walls in the frame structure buildings as well as the boundary wall.Compared to the well-known acotec panels, the wall panels made by our extuder can be reinforced with steel wires.
The machine work on the principle of extrusion. The extruder machine moves at a constant speed along a track. It can produce 1.5meters -1.7 meters long wall panel per minutes. The production capacity is about 450-500 square meters per minutes.
Benefits of extruder machine.
- Low investment .The investment cost of a simple production line inlcing extruder and supporting machiens does not exceed US$20,000
- High return. The investment cost can be recovered within 1-2 years.
- Easy to build production site. There is no need to build a special casting bed. Casting bed is only the flat and strong concrete floor and steel rails
- Strong adaptability to raw materials: The wall panel extruder can work with the normal concrete or lightweight aggregate concrete
Main modes and specification
|
Models Of extruder |
Panel |
Panel |
Hollow |
Holes |
Motor |
Vibrator |
(CM) |
Weight (KG) |
|
|
Thick |
Width |
Nos. |
Diameter |
||||||
|
(cm) |
(cm) |
|
(mm) |
||||||
|
JQT60 ×600 |
60 |
600 |
10 |
32 |
4.0 |
0.8 |
236*100*72 |
900 |
|
|
JQT75×600 |
80 |
600 |
8 |
45 |
5 |
1.1 |
236*100*72 |
950 |
|
|
JQT90×600 |
90 |
600 |
7 |
58 |
5.5 |
1.5 |
236*100*72 |
1000 |
|
|
JQT100×600 |
100 |
600 |
6 |
63 |
4.0 |
0.8 |
238*113*74 |
1050 |
|
|
JQT12×600 |
120 |
600 |
5 |
88 |
5.0 |
1.1 |
238*113*74 |
1100 |
|
|
JQT150×600 |
150 |
600 |
5 |
88 |
5.5 |
1.5 |
246*113*75 |
1200 |
|
|
JQT180×600 |
180 |
600 |
12 |
58 |
11 |
4.5 |
255*113*75 |
1300 |
|
|
JQT200×600 |
200 |
600 |
12 |
65 |
11 |
5.5 |
255*113*75 |
1400 |
What can we do for you ?
1. Supply the top quality concrete wall panel extruder and supporting machines
2. Provide drawings and plan for the production site
3. Provide installation service
4. Provide one-stop technology consult including production, operating, finished wall panel installation guide
For details , please kindly vist our website
