China hot sale cheap price Hifoune 3 ton diesel forklift
產品型號:Hifoune-01
產品特色
Forklift truck are industrial vehicles, which refer to various wheeled handling vehicles for loading, unloading, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It is often used for the transportation of large objects in storage, and is usually driven by fuel engines or batteries.
產品規格

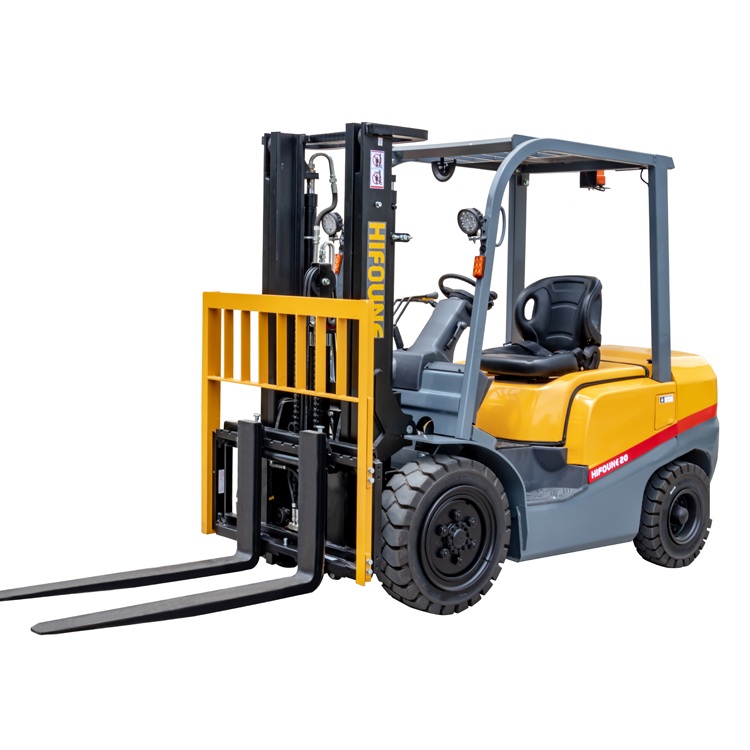

China hot sale cheap price Hifoune 3 ton diesel forklift
Product Description
Forklift truck are industrial vehicles, which refer to various wheeled handling vehicles for loading, unloading, stacking and short-distance transportation of palletized goods. The International Organization for Standardization ISO/TC110 is called an industrial vehicle. It is often used for the transportation of large objects in storage, and is usually driven by fuel engines or batteries.
The technical parameters of the forklift are used to indicate the structural characteristics and working performance of the forklift. The main technical parameters are: rated lifting capacity, load center distance, maximum lifting height, mast angle, maximum travel speed, minimum turning radius, minimum ground clearance, wheelbase, wheelbase, etc.
Specification
Model | UNIT | FD30T | |||
Specifications | Power Unit | Diesel | |||
Operator Type | Driver/seat | ||||
Transmission Box Type | Electronic hydraulic transmisson | ||||
Rated Capacity | kg | 3000 | |||
Load Center | mm | 500 | |||
Max.Lifting Height | mm | 6000 | |||
Tyre Type | Pneumatic Tyre | ||||
Tyre Number (Front/Rear) | 2/2 | ||||
Tyre Size (Front/Rear) | 28×9-15-14PR/6.5-10-10PR | ||||
Performance | Lifting Speed (Loaded/Unloaded) | mm/s | 500/550 | ||
Lowering Speed (Loaded/Unloaded) | mm/s | 480/450 | |||
Travelling Speed (Loaded/Unloaded) | km/h | 19/20 | |||
Max.Gradeability (Loaded) | % | 21 | |||
Max.Drawbar Pull (Loaded) | n | 18 | |||
Mast Tilting Angle (Fwd/Bwd) | deg | 3/6 | |||
Free Lifting Height | mm | 1635 | |||
Turning Radius | mm | 2400 | |||
Dimensions | Overall length (without fork) | mm | 2705 | ||
Overall Width | mm | 1240 | |||
Overhead Guard Height | mm | 2130 | |||
Fork Size (LxWxT) | mm | 1220×125×45 | |||
Mast Height (Fork lowered) | mm | 2680 | |||
Battery (Voltage/Capacity) | V/Ah | 12/90 | |||
Truck Weight | kg | 4580 | |||
Fuel Tank Capacity | L | 70 | |||
Engine | Brand | XINCHAI | MITSUBISH | ISUZU | |
Model | C490 | S4S | C240 | ||
Rated Power | kw/rpm | 40/2650 | 35.3/2250 | 35.4/2500 | |
Rated torque | n-m/rpm | 160/1600-2000 | 169/1700 | 137.7/1800 | |
Number of cylinder | 4 | 4 | 4 | ||
Displacement | 2.67 | 2.49 |
2.37 |
Feature
High quality
-- Reasonable layout of hose and hard pipe, reduce oil pressure loss;
-- The mature and reliable engine provides plenty of power;
-- The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle;
-- The enhanced transmission system has stronger shock resistance and bump resistance.
High security
-- Wide vision mast provides a good front view, accurate disassembly of goods. The grille roof guard provides good upper visual field for drivers;
-- Standardized LED lamp, high brightness, long life, energy saving and environmental protection.
High comfort
-- Standard small diameter steering wheel, light control, reduce driver fatigue;
-- The combined color instrument has strong human- -machine interaction and timely and accurately feedback the running state of vehicles;
-- Spacious control space, comfortable seats, enjoy the pleasure of riding.
Rich options
-- high exhaust device, air prefilter, fireproof cap, solid tire, two stage free lift mast, three stage free lift mast, widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.
Company Information
Xiamen Hifoune Machinery Co., Ltd. is located in the Xiangan industrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. Our main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipment. We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.
Our Web:
https://hifoune-forklift.en.made-in-china.com/
Our Services
1. Warranty: 1 years or 2000 working hours spare parts warranty depends on which first arrival.
2. 24hours Service system: Any quality claim or question from customers will be replied by our service man within 24 hours, to assure all customers get a quick feedback from our professional technical team.
Packaging & Shipping
Our factory strictly follows the standard export packaging. If the customer has any special packaging or other requirements, we will also pack it according to the customer's requirements.
FAQ
Q: Are you manufacturer or trader?
A: We are a professional manufacturer of Forklift.Welcome to visit our factory at any time.
Q: What's the warranty of your products?
A: All our products are provided 1 years guarantee or 2000 work hours.
Q: When will make delivery ?
A: Typically standard products are delivered in 30days.
Q:What is payment terms?
A: 1) 30% Deposit, 70% Before Shipment
2) Letter of credit payment
Q:May I know the status of my order?
Yes. We will send you information and photos at different production stage of your order. You will get the latest information.
