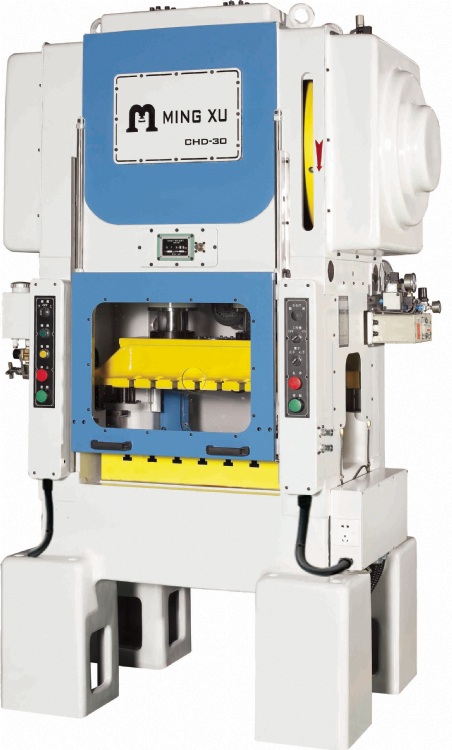

CHD-30
產品型號:CHD-30
產品分類:工具機產業機械 / 金屬成型工具機 / 高速精密沖床
產品特色
CHD- Series: Gantry Double Crank Precision High Speed Press
1. Integral high rigidity cast steel through internal stress relief ensures long term high precision
2. Six round guide pole apply with lubrication system to minimise the kinetic force of friction and heat deformation
3. Inverted dynamic balancing device to achieve high speed stability of equibrilium
4. Electric die height adjustment equipped with digital die height indicator and hydraulic slide locking device to ensure product accuracy
5. PLC control units display press angle, tachogram, fault signal and other information
產品規格
CHD-30规格协议书 | |||||
}床吨数 | Tons | 30(300KN) | 30(300KN) | 30(300KN) | 30(300KN) |
行程 | mm | 20 | 25 | 30 | 40 |
速度 | spm | 200-1000 | 200-900 | 200-800 | 200-600 |
闭合高度 | mm | 195-235 | 192-232 | 190-230 | 185-225 |
调整量 | mm | 40 | 40 | 40 | 40 |
工作台 | mm | 650x470x100 | |||
滑块 | mm | 620x340 | |||
落料孔 | mm | 500x100 | |||
马达 | HP | 10 | |||
机台重量 | Kg | 5200 | |||
电源 | AC380V 50Hz | ||||
操作电压 | AC220V/DC24V | ||||
电线要求 | 使用五芯线(六平方) | ||||
J I S 精度 | 特级 | ||||
涂装色 | 明勖标准色 |
