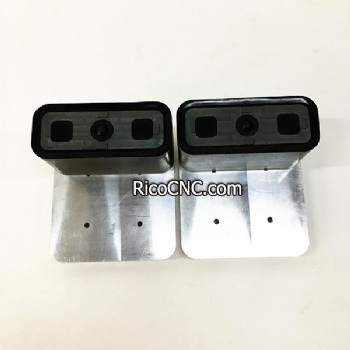

AS24M00075 Biesse Vacuum Block 132x54x74mm

AS24M00075 is the 1/3 size CNC vacuum pod in 74mm height for Biesse Rover Point to Point CNC processing center machines.

The AS24M00075 vacuum blocks come in the complete set, include the ball-valve and white locating rings.
Also, shutter valve 1704A0014, 132x54mm Biesse rubber gasket FNAW550127, vacuum pod support ring 1405A0013 are for sale as replacement spare parts.

The Biesse vacuum cups can be rotated every 15 degrees. The base body and holding fixture have a grating that is divided into 15° steps. Thus, it is possible to position the suction cup from different angles on the pod and rail table. It reduced tool changeover time.

The Biesse work table is guaranteed to hold the workpiece securely and ensures quick and easy changeover of pod and clamps.

ATS (Advanced Table-Setting System): For the quick and easy manual positioning of the clamping systems.
SA (Set-Up Assistance): For the quick, easy and controlled manual positioning of the clamping systems. The linear sensors in the work table, along with the collision control function, reduce the risk of collisions

A big range of replacements for Biesse Rover ATS vacuum pods 29mm, 48mm, 74mm height are available here, also the ball-valve and locating rings, etc.

Welcome to contact with RicoCNC.
