Horizontal Type SYTW800/5.8-32 Valve Test Bench   valve pressure test bench   valve grinding machinery

This test bench is designed and manufactured with reference to similar products of Germany and GB4981 stabdard, Suitable for sealing test of straight-through welded valves and straight- through flange connection valves , before and after installation.

 Suitable for shell test, sealing test (low pressure sealing test and high pressure sealing test) and upper seal test (ISO5208) for GB4981

Features: simple operation, safe and reliable, sensitive test.

Valve Pressure Test Bench  FEATURES

1.Product  characteristics and application:

This test bench is designed and manufactured with reference to similar products of Germany and GB4981 stabdard,It is suitable for sealing test of straight-through welded valves and straight- through flange connection valves , before and after installation. It is suitable for shell test, sealing test (low pressure sealing test and high pressure sealing test) and upper seal test (ISO5208) for GB4981, in order to prevent faulty valves from entering work site.

Features: simple operation, safe and reliable, sensitive test.

2. Features :

1)     Applicable to gate valve,globe valve,ball valve,Check valve and etc direct-flange connection valves

2)     Accessories special sealing disc is applicable to test welded valve’s performance

3)     Valve clamping type is up pressure,clamp is through press on the sides of direct-flange connection valves

4)     Standard equips with High and low pressure water pump pressure systems,gas supercharging is selection

3. Valve testing Equipment Technical parameters:

4.Operation :

1)Before use, press "pump" first, check motor steering and check whether the action is accurate and reliable.

2) Clamp valve

  Valve’s clamping:

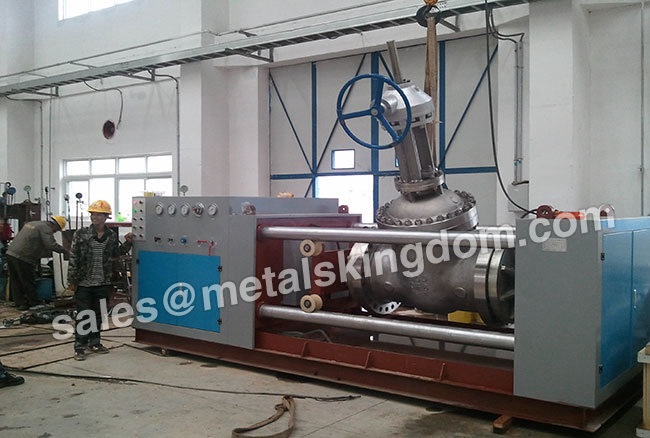

a)        On the premise of ensuring safety, the valve is hoisted to the test bench  working area.

b)        Put the suitable sealing ring in the sealing plate according to the tested valve.

c)        Put the tested valve in place .

d)        Open “forward”postion of the "screw forward and backward"knob, opens "into" position, the screw will quickly move to the end of the valve end 3-5 centimeters after the stop. According to the different length of the valve rotation "screw advance and retreat" "screw forward and back" knob to control the screw to move the sealing disk to the right position.

e)        Press the "top tight" button to clamp the valve. Before the pressure, the oil cylinder should be determined not to return, if not returned, should first press the "loose" button to the top pressure cylinder back.

5.Comparison Table  for Valve Nominal Diameter and Max Test Pressure

Comparision Table of Valve Sealing Pressure and Test Pressure

Metals Kingdom is a China supplier of Valve Test Machine, valve tester & Grinder, Valve Pressure Test Bed, Pipe Cutting Machinery. We have a high-tech work shop. We have a complete quality management system. Choose us, you can be get most careful and thoughtful service!

 If you are interested in our gate valve tester, you can click here to visit our website.
