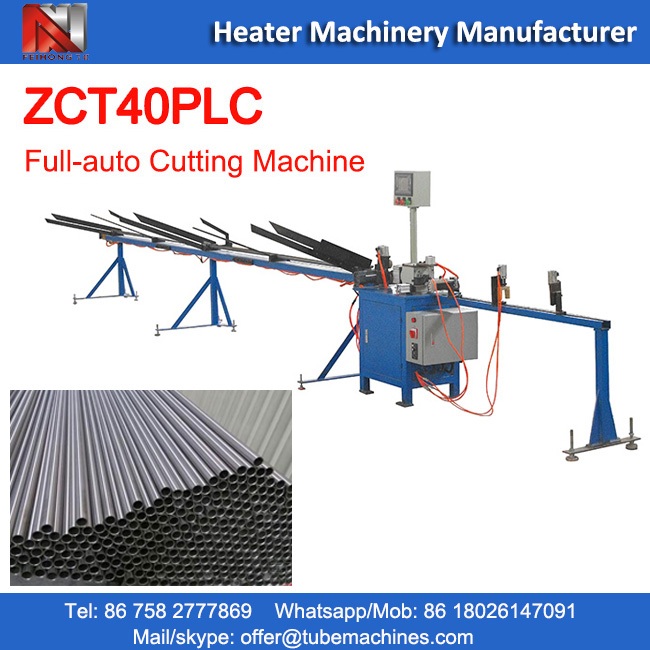

Full auto tube Fixed length cuttting machine
產品型號：ZCT40PLC
產品分類：自動化設備/產業機械 / 鋼管製造機 / 切管機
產品特色
Fully automatic feeding and cutting tube machine adopts the structure of manual loading ,automatic feeding and automatic cutting. It is a special equipment to cut the tubes in a fixed length for heating elements.
產品規格
The machine is PLC controlled and operated by man-machine interface, and one person can operate multiple equipments in same time. ZCT-40PLC Full-Auto Cutting Machine suitable for copper pipes, iron pipes, stainless steel pipes, aluminum pipes, etc.
Main models and technical parameters
model:ZCT-40PLC
diameter to cut:Ф5-30mm;
length:<6000mm
productivity:5000-10000pcs/8h
speed:1400tpm
power:380V/50Hz/0.75Kw
air supply:5-7Kg/cm³
size:8000*1000*1500mm
weight:500Kg
