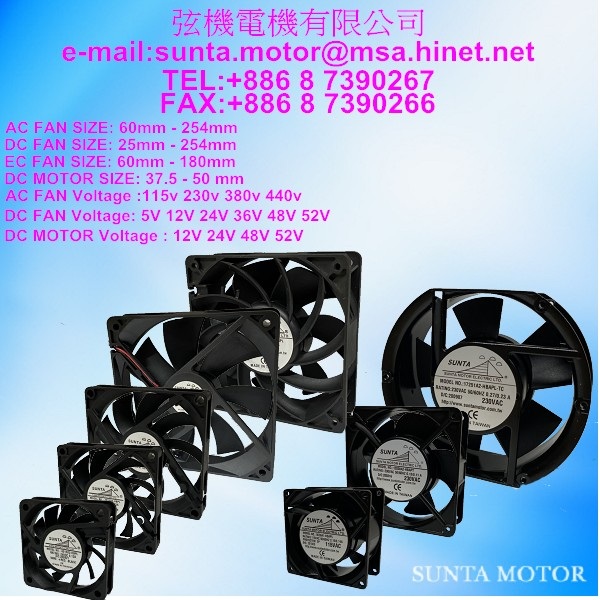

散熱風扇
產品型號：17251A2-HBAPL
產品特色
MODEL NO. 17251A*-* SERIES
Size: 172*150*51mm.(6.77*5.91*2.10 inch.)
Motor: Shaded pole, temperature protected.
Frame(Houseing): Aluminum die-cast. AP: Painted black.
Impeller: PBT + 30% fiber glass. Black color, UL94V-0.
Lead wire: 1007#22AWG. UL/CSA.
Insulation resistance: Min.100M Ohm at 500 VDC between terminal and the frame.
Dielectric Strength: 1 sec at 1500 VAC.50/60 HZ.
Bearing type: B: 2 ball bearing.
Operating Temp: Ball bearing:within-20~80 degree C
Life expectancy: Ball bearing:50,000 hours at 60 degree C.
Above measurements Tem. at: Within 20~30 degree C.
Above measurements humidity at: 65%+-15%.
Safety Approvals:CE
Net weight : 930 grams (2.31 pounds)
CONNECTOR:T: terminalL: lead wire
產品規格
| MODEL NO. | RATED | VOLTAGE | FREQ | RATED | RATED | MAX. AIR | MAX.AIR | NOISE | ||
| REANGE | AMP | RPM | FLOW | PRESSURE | ||||||
| VAC | VAC | HZ | A | RPM | CMM | CFM | MM/H20 | INCH/H20 | DBA | |
| 17251A1-HBAPL OR T | 115 | 80-120 | 50 / 60 | 0.60 / 0.50 | 2600 / 3100 | 5.40 / 6.60 | 190 / 235 | 16 / 20 | 0.63 / 0.79 | 48 |
| 17251A1-MBAPL OR T | 115 | 80-120 | 50 / 60 | 0.40 / 0.50 | 2200 / 2400 | 4.70 / 4.80 | 165 / 170 | 13 / 14 | 0.51 / 0.55 | 37 |
| 17251A1-LBAPL OR T | 115 | 80-120 | 50 / 60 | 0.20 / 0.30 | 1800 / 1700 | 3.10 / 3.00 | 110 / 106 | 10 / 8 | 0.40 / 0.31 | 29 |
| 17251A2-HBAPL OR T | 230 | 160-260 | 50 / 60 | 0.27 / 0.23 | 2600 / 3100 | 5.40 / 6.60 | 190 / 235 | 16 / 20 | 0.63 / 0.79 | 48 |
| 17251A2-MBAPL OR T | 230 | 160-260 | 50 / 60 | 0.19 / 0.18 | 2200 / 2400 | 4.70 / 4.80 | 165 / 170 | 13 / 14 | 0.51 / 0.55 | 37 |
| 17251A2-LBAPL OR T | 230 | 160-260 | 50 / 60 | 0.16 / 0.15 | 1800 / 1700 | 3.10 / 3.00 | 110 / 106 | 10 / 8 | 0.40 / 0.31 | 29 |
