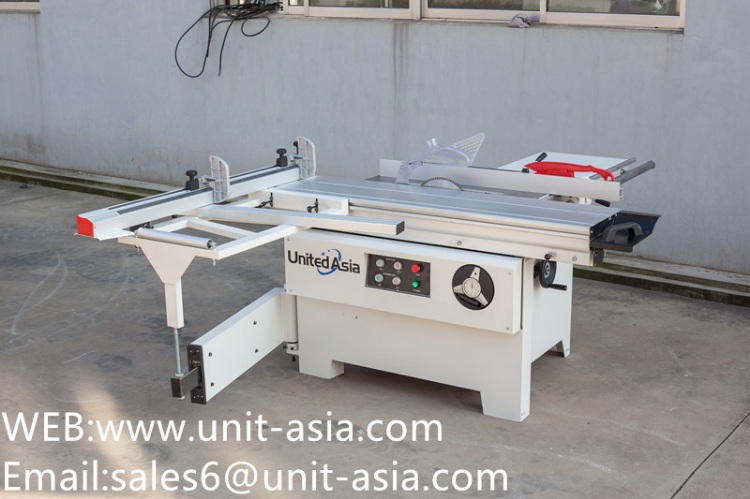

Panel saw
產品型號：UA1600S
產品分類：木工產業機械 / 鋸木機 / CNC 木工用帶鋸機
產品特色
Dimension of sliding table saw 1600*375mm
Gross cut capacity 1600mm
Width of cut between saw blade and ripe fence 1250mm
Saw blade 300mm(250-350)
Height of cut 300mm 70mm
Speed of main saw blade 6000r.p.m
Tilling saw blade 45 degree
Main motor 3kw(7.5HP)
Scoring saw blade diameter 120mm
Speed of scoring saw blade diameter 8000r/min
Scoring motor 0.75kw
Net weight 550kg
Overall dimensions 1600*2550*900mm
Loading 20GP/40HQ 12SETS/24SETS
產品規格
|
Dimension of sliding table saw |
1600*375mm |
|
Gross cut capacity |
1600mm |
|
Width of cut between saw blade and ripe fence |
1250mm |
|
Saw blade |
300mm(250-350) |
|
Height of cut 300mm |
70mm |
|
Speed of main saw blade |
6000r.p.m |
|
Tilling saw blade |
45 degree |
|
Main motor |
3kw(7.5HP) |
|
Scoring saw blade diameter |
120mm |
|
Speed of scoring saw blade diameter |
8000r/min |
|
Scoring motor |
0.75kw |
|
Net weight |
550kg |
|
Overall dimensions |
1600*2550*900mm |
|
Loading 20GP/40HQ |
12SETS/24SETS |
