Shandong gold cnc machine tool Co., Ltd. is a high and new technology enterprise with independent import and export rights.The company has been committed to the research and development and production of high and medicum CNC machining tools,including the main products of high-speed vertiacl CNC machining centers,horizontal metal band sawing machine,radial drilling machine,various milling machines,CNC slotting machine,product users are over the industries .

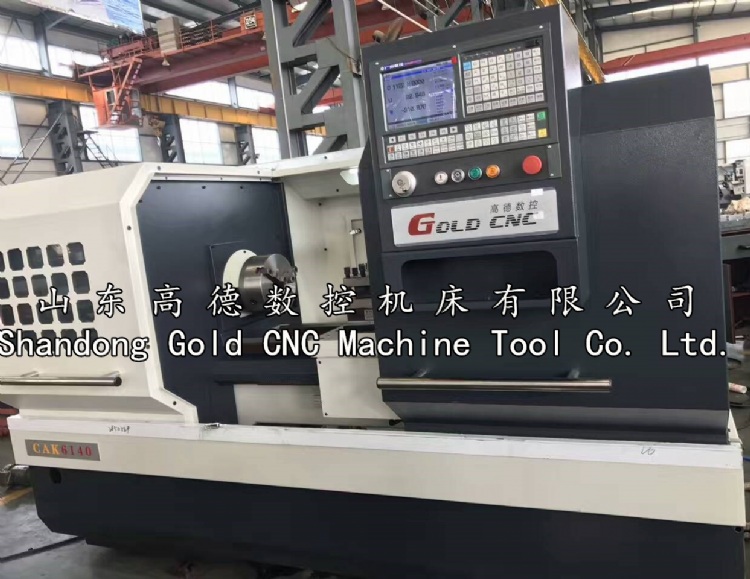

product description:

1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.

1. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

Specifications:

Max.Swing over bed : Φ400

Max.swing over cross slide : Φ220

Maximum length of workpiece : 750/1000/1500/2000

Spindle hole : 52mm(82mm)

Spindle nose : ISO-C6(C8)

Spindle tap : MT6

Spindle speeds(Number) : 90-1800rpm

Spindle speeds :90-1800rpm

Feed : Z-axis stroke 750/1000/1500/2000

X-axis stroke   330

rapid moving speed(m/min)  3/6

X/Z min input(mm) 0.001
