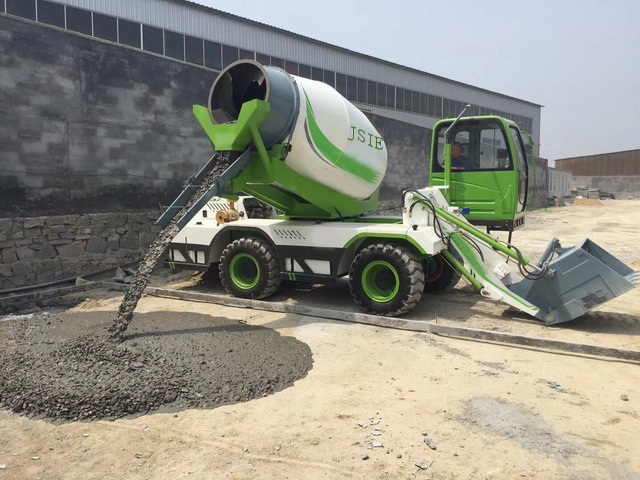

Self Loading Concrete Truck Mixer (4 m3)

Parameters of self loading concrete mixers
Overall dimension (LxWxH): 7500x2850x3600 mm
Wheelbase: 2450 mm
Curb weight: 8500 kg
Drive form: Torque converter
Maximum speed: 35 km/h
Maximum gradeability: 30
Minimum turning radius: 4000 mm
Minimum ground clearance: 330 mm

Engine
Model: Yuchai YCD4122G
Rated power: 85kw

Transmission case
Model: ZL-280 power shift transmission
Gear: 4 forward, 4 reverse

Conventional parameters
Equipment model: JBC40

Oil filling quantity
Fuel tank: 230 liters
The total capacity of the hydraulic system: 170 liters
Oil: 16 liters

Parameters of hydraulic system
Reduction gears: KY07-5-J
Pump: Parker pump
Motor: HA2FM56/ 61W-VTD527

Parameters of the water supply system
The capacity of the Water tank: 660 Litre
Modes of water supply: Time relay

Stirring and unloading
Geometric drum capacity: 6000L (6.0 m3)
Rotating speed of the drum: 13 rotations per minute
Outputs of concretes: 4.0 m3 per drum


The drum can rotate at a 270 degree on the horizontal level and is equipped with a quick lock system. The rotating of the drum is achieved by the gear pump and piston hydraulic motor, and the cab and the back of the mixer truck are equipped with manual electric valves. The drum is adjusted horizontally by two jacks with two functions. The detachable chute makes the cement or concrete discharged at a long distance. The discharge chute can rotate at 90 degrees and can be controlled through a handle by hands. The rotation of the chute can not synchronize with the rotation of the drum. In addition, Justsun provides two extending parts of chutes for customers.

Please noted that all the self loading concrete mixers are equipped with four-wheel drive (4*4), and the four-wheel steering function can be selected based on customers' needs.
