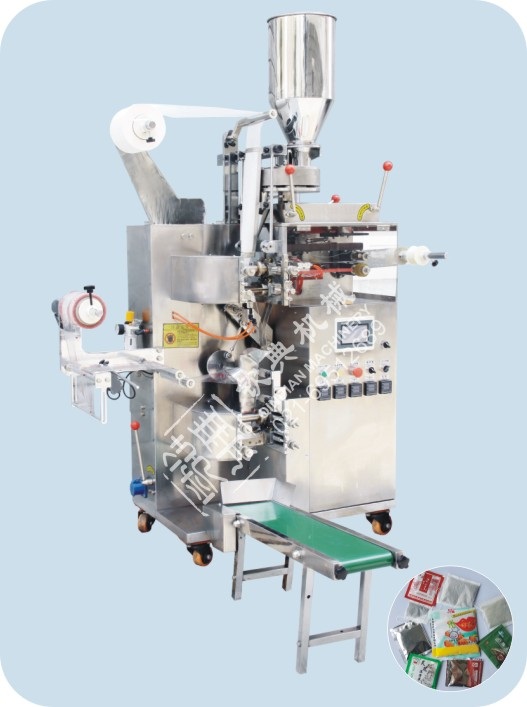

Full automatic inner and outer bag packing machine with thread and tag
產品型號:QD-18-II
產品分類:包裝印刷暨食品及製藥機械 / 包裝機械 / 全自動三邊封製袋機
產品特色
The machine is a latest heat sealing packing machine which has automatic multi-functions. The main feature of this machine is one-time packing for the inner and outer bag, avoiding hands directly contacting with stuff and improving the efficiency. The inner bag is made of filterable cotton paper which can be automatically packed with toting thread and label. The outer bag is composite paper. The advantage is photoelectric location for the tag and outer bag, adjustment to the need of the content, length of inner bag and outer bag. The dimension of inner and outer bag can be adjusted according to the different requirements from customer to achieve the perfect shape, upgrade the appearance of product and add the value of product.
產品規格
Pack material
paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic.tea paper,thread,tag
Performance parameter
Model |
QD-18-11 |
Measure |
1-15gr/bag |
Capacity |
35-60 bags/min |
Tag size |
W:40-55mm L:20-24mm |
Thread length |
155mm |
Inner bag |
W:50-80mm L:50-100mm |
Outer bag |
W:80-130mm L:70-110mm |
Total power |
220V60HZ/110V50HZ/3.7KW |
Demension |
1200(L)*900(W)*1900(H)mm |
Weight |
500kg |
