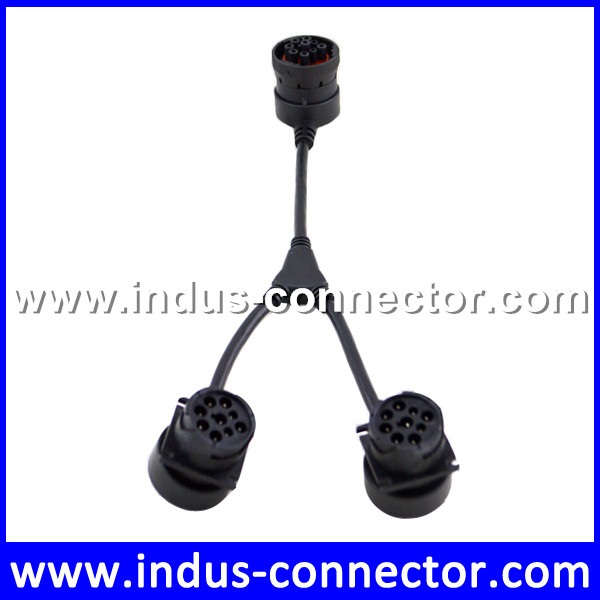

Can bus cable J1939 one male to two female Y splitter cable 9 pin
產品型號：20190109
產品分類：自動化設備/產業機械 / 自動化設備 / 自動化控制系統
產品特色
• J1939 Circular connector according to IEC 61076-2-104
• J1939 circular connector with J1939*1.0 screw locking
• Equivalent to Binder, Phoenix, Lumburger automation...
• Waterproof rating is IP67/IP68, protected from dust and water during immersion, resistant to many oils and chemical
Generally Description:
Connector Series:J1939
Standard: IEC 61076-2-104
Coding: J1939
Gender:Male and Female
Connector Design: Cable plug
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Normal Temperature: -10℃~+80℃
Material:
Connector Body: TPU
Male Contacts: Brass with gold plated
Female Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Cable Jacket: PVC/PUR
Waterproof 0-ring: FKM
Electrical data:
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Rated Current: 3A~1A
Rated Voltage: 60V~30V
產品規格
Enough experience in self researching and developing
With 9 years experience in self researching and developing diversified connectors which are equivalent to Binder, Phoenix and Lumburger-automation... Shenzhen Indus-connector Limited is a well-known for sensor connectors, waterproof connectors, circular connectors, industry connectors, and customized solution connector and cable manufacturer, mainly in M5, M8, M9, M10, M12, M16, M23, 7/8'' and OBD cable, J1708, J1939 CAN BUS cable.
Providing Complete Customer Services and Strong R&D Capabilities
With professional enthusiasm, we provide complete customer services, strong R&D capabilities and excellent product quality control. All of the advantages contribute to establishing a more important than ever position for our company in the global market, leading the world into the new era of digital economy.
We use unique professional skills integrated with customized services to provide brand new technology-based product solutions. By connecting the future, we create the win-win strategy for each of our customers.
