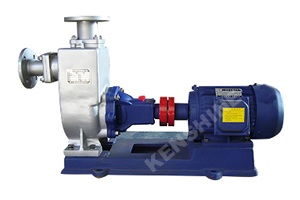

ZW Self priming sewage pump for waste water
產品型號：50ZW15-30
產品特色
ZW series self-priming sewage pumps are with self priming and sewage discharge. It means the pumps can not only be self priming as the same as ZX series self priming pump for clean water without foot valve and pouring water but also suck and discharge the large grain and long fiber and sediment and impurity in the waste water. And the performance is very steady. It is very convenient to operate and move and install and maintain.
ヾEnvironment temperature≤45℃，Liquids temperature≤120℃。
ゝLiquid PH: Cast iron pump :6∼9，Stainless steel :1∼14。
ゞMax grain diameter can be 60% of caliber for pump. Length of fiber can be 5 times as caliber for pump.
々Impurity weight into liquid can not more than 15% of liquid weight. Liquid density≤1240kg/cm3
產品規格
ZW/ZWP Self priming sewage pump can be made from cast iron or stainless steel and used to transfer the waste water or waste liquids with solid grain or impurity etc.
Parameter:
|
Model |
Flow (m3/h) |
Head (m) |
Power (KW) |
Rotary speed (r/min) |
Efficiency (%) |
suction height (m) |
|
ZW25-8-15 |
8 |
15 |
2.2 |
2900 |
45 |
5.5 |
|
ZW32-5-20 |
5 |
20 |
2.2 |
2900 |
45 |
5.5 |
|
ZW32-10-20 |
10 |
20 |
2.2 |
2900 |
45 |
5.5 |
|
ZW32-9-30 |
9 |
30 |
3 |
2900 |
48 |
5.5 |
|
ZW40-10-20 |
10 |
20 |
2.2 |
2900 |
45 |
5.5 |
|
ZW40-20-15 |
20 |
15 |
2.2 |
2900 |
45 |
5.5 |
|
ZW40-15-30 |
15 |
30 |
3 |
2900 |
48 |
5.5 |
|
ZW50-10-20 |
10 |
20 |
2.2 |
2900 |
45 |
5.5 |
|
ZW50-20-12 |
20 |
12 |
2.2 |
2900 |
45 |
5.5 |
|
ZW50-15-30 |
15 |
30 |
3 |
2900 |
48 |
5.5 |
|
ZW50-20-35 |
20 |
35 |
5.5 |
2900 |
48 |
5.5 |
|
ZW65-30-18 |
30 |
18 |
4 |
1450 |
45 |
5.5 |
|
ZW65-25-30 |
25 |
30 |
5.5 |
2900 |
50 |
5.5 |
|
ZW65-25-40 |
25 |
40 |
7.5 |
2900 |
50 |
5.5 |
|
ZW65-40-25 |
40 |
25 |
7.5 |
2900 |
50 |
5.5 |
|
ZW65-65-25 |
65 |
25 |
7.5 |
2900 |
52 |
5.5 |
|
ZW80-40-16 |
40 |
16 |
4 |
1450 |
50 |
5.0 |
|
ZW80-40-25 |
40 |
25 |
7.5 |
2900 |
50 |
5.5 |
|
ZW80-25-40 |
25 |
40 |
7.5 |
2900 |
50 |
5.5 |
|
ZW80-65-25 |
65 |
25 |
7.5 |
2900 |
52 |
5.5 |
|
ZW80-80-35 |
80 |
35 |
15 |
2900 |
45 |
5.5 |
|
ZW80-40-50 |
40 |
50 |
18.5 |
2900 |
50 |
5.5 |
|
ZW80-50-60 |
50 |
60 |
22 |
2900 |
55 |
5.0 |
|
ZW100-100-15 |
100 |
15 |
7.5 |
1450 |
50 |
5.5 |
|
ZW100-80-20 |
80 |
20 |
7.5 |
1450 |
53 |
5.5 |
|
ZW100-100-20 |
100 |
20 |
11 |
1450 |
53 |
5.5 |
|
ZW100-100-30 |
100 |
30 |
22 |
2900 |
53 |
5.5 |
|
ZW100-80-45 |
80 |
45 |
30 |
2900 |
55 |
5.5 |
|
ZW100-80-60 |
80 |
60 |
37 |
2900 |
53 |
5.5 |
|
ZW100-80-50 |
80 |
80 |
45 |
2900 |
50 |
5.5 |
|
ZW125-120-20 |
120 |
20 |
15 |
1450 |
55 |
5.5 |
|
ZW150-180-14 |
180 |
14 |
15 |
1450 |
60 |
5.5 |
|
ZW150-180-20 |
180 |
20 |
22 |
1450 |
60 |
5.0 |
|
ZW150-180-30 |
180 |
30 |
37 |
1450 |
65 |
5.0 |
|
ZW150-180-38 |
180 |
38 |
55 |
1450 |
45 |
6.0 |
|
ZW200-280-14 |
280 |
14 |
22 |
1450 |
65 |
5.0 |
|
ZW200-280-20 |
280 |
20 |
37 |
1450 |
62 |
5.0 |
|
ZW200-300-25 |
300 |
25 |
45 |
1450 |
59 |
5.0 |
|
ZW200-280-28 |
280 |
28 |
55 |
1450 |
55 |
5.2 |
|
ZW250-420-20 |
420 |
20 |
55 |
1450 |
61 |
4.5 |
|
ZW300-800-14 |
800 |
14 |
55 |
1450 |
65 |
4.5 |
