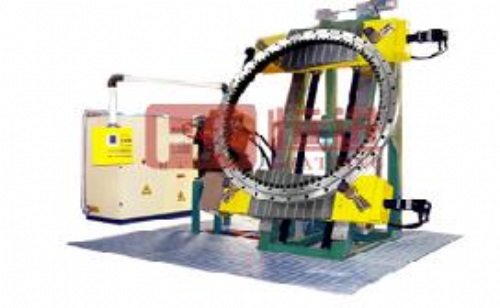

2500mm回轉支承軌道淬火機床
產品型號：HKVP80 HKVP100 HKVP160 HKVP250
產品分類：自動化設備/產業機械 / 其他產業機械 / 熱處理設備
產品特色
The quenching machine adopts an obliquely vertical type, has an included angle of less than 70 degrees with the horizontal plane, and is a steel frame welded structure. Work-pieces adopt the support of a way of four-point positioning with transverse beam structures, two roller wheels of the lower transverse beam are driving wheels and adopt the working mode of supported type supporting work-pieces.
The working mode of the quenching machine: an inductor is positioned at the outer side of a working track when an outer raceway is machined, and is positioned at the inner side of a work-piece track when an inner raceway is machined; the right roller wheels on the uppertransverse beam and lower transverse beam are respectively driven by one servo motor, and the splined shaft drive is adopted between the two roller wheels; the roller wheels drive the work-piece to rotate when in working, the work-piece is quenched continuously, and the inductor enables a crisscross sliding table to automatically track to and fro and left and right by a PLC through a floating mechanism.
產品規格
Machine structure : Oblique vertical type
Rotation mode : Four-roller drive
Working mode : Suspensible type, supported type
Quenching speed : Touch screen/CNC setting
Induction coil and working clearance : Bidirectional automatic tracking, and the tracking accuracy is 0.1mm, (It also can adopt the mechanical tracking method.)
Electric control : Touch screen and PLC/802C/802D/840D (Select according to the requirements of the users.)
Big/small work-piece adjustment : Adjusting roller and transformer slipway
Display : Quenching speed, cooling water temperature, quenching fluid temperature, tracking deviation value
Heating power : Controllable silicon/transistor
Driving motor : Speed reduction motor/alternating current servo motor
Number of shafts : 4 (small size is 3)
Number of work stations : 1(one (two is optional: when one is for quenching, the other one is for loading and unloading) )
Machine adaptability : olny adopt track quenching
Quenching quality and consistency : good
Type/Project Unit
