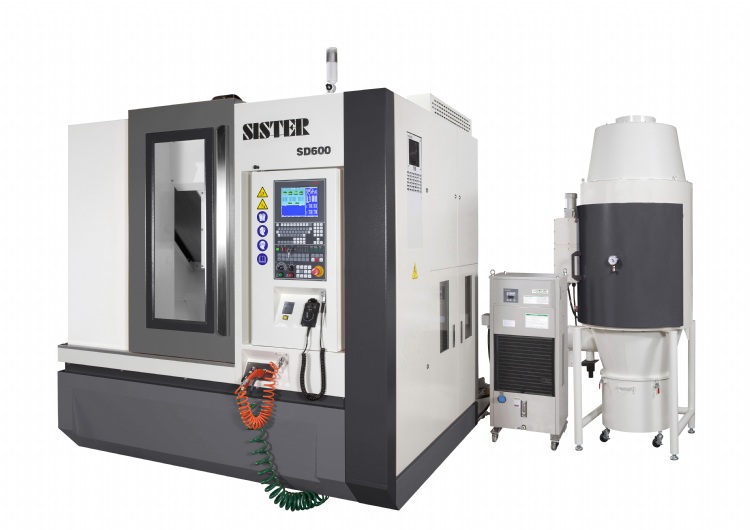

石墨加工機SD600G
產品型號：SD600G
產品特色
SISTER之石墨加工機結合低溫高速乾式切削與強力吸塵系統，專用於石墨材料之精密加工。
1.乾性切削，粉塵收集容易無環保汙染集耗材問題。
2.密閉式護罩強大負壓吸塵力，不讓粉塵外洩影響環境損害人體健康。
3.電器箱及操作箱內裝正壓排氣裝置，避免粉塵進入造成電路短路，以保安全。
4.高速運算控制器搭配高速加工技術節省加工時間，提高工件精度。
產品規格
|
|
Model |
Unit |
SD600 |
|
Control |
CNC controller |
|
Intek/Mitsubishi/Fanuc |
|
Travel 行程 |
X x X-axis/Y x Y-axis/Z x Z-axis |
mm |
600/600/320 |
|
Table top surface to spindle nose |
mm |
80~400 |
|
|
Linear Guideway type (X/Y/Z) |
mm |
45/45/45(THK-Ball type) |
|
|
Ball screw(X/Y/Z) |
mm |
∅40/ ∅40/ ∅40 |
|
|
Table 工作台 |
Table work surface area (X-axis x Y-axis) |
mm |
600x600 |
|
T-Slots (Size x Number x Centre) |
|
18x4x150 |
|
|
Max. work piece weight |
Kg |
500 |
|
|
Feed rate 速度 |
Rapid traverse rate X/Y/Z |
m/min |
20/20/20 |
|
Cutting feed rate |
mm |
1-15000 |
|
|
Minimum input Increment |
mm |
0.001 |
|
|
Spindle 主軸 |
Spindle holder |
|
HSK-E40 |
|
Spindle motor |
Kw |
4.6 |
|
|
Spindle speed |
rpm |
24000/30000 |
|
|
Cooling Lubrication |
|
Oil/Grease |
|
|
A.T.C 刀庫 |
Tool magazine capacity |
T |
24 |
|
Max. tool weight |
Kg |
1.5 |
|
|
Max. tool length |
mm |
150 |
|
|
Tool selection |
|
Armless |
|
|
Motors 伺服馬達 |
X-axis drive motors |
kw |
3.5 |
|
Y-axis drive motors |
kw |
3.5 |
|
|
Z- axis drive motors |
kw |
3.5 |
|
|
Others 其他 |
Power |
KVA |
20 |
|
Pneumatic pressure |
Kg/cm² |
6 |
|
|
Cutting pump |
HP |
3/4 |
|
|
Coolant tank capacity |
L |
250 |
|
|
Net weight |
Kg |
6500 |
|
|
Floor space |
mm |
2200x2700x2650 |
|
Motor 馬達 |
HP |
7.5HP TEFC |
|
Air Flow 流量 |
|
2500FT³ ³/min |
|
Negative pressure 負壓 |
In/H2O |
1.26 |
|
Max. negative pressure 最大負壓 |
in/H2O |
11.5 |
|
Inlet 入口 |
|
8”x 1 holes |
|
Including 濾材 |
mm |
∅600mm x 600 |
|
Machine floor space (L/W/H) 機台佔地面積 |
cm |
275 x 220 x 265 |
|
Collector floor space (L/W/H) 集塵器面積 |
cm |
120 x 120 x 260 |
