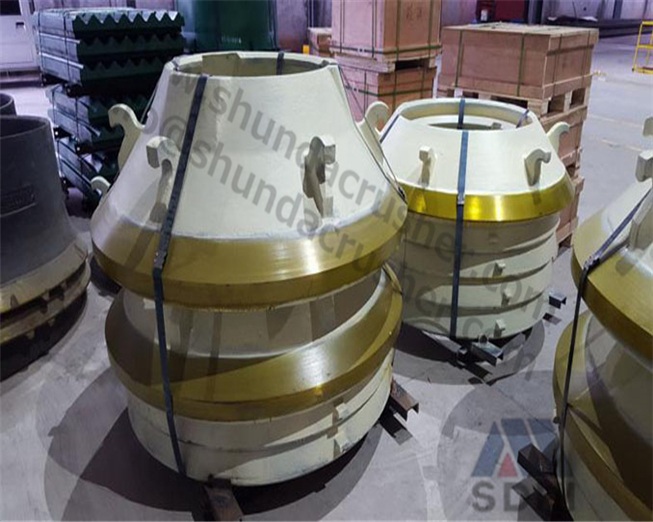

Sandvik S series cone crusher standard mantle/concave ring manufacture
產品型號：Sandvik s cone crusher
產品特色
Material: Mn13/Mn13Cr2/Mn18/Mn18Cr2
Shunda Heavy Industry Machinery Co.,Ltd supply Sandvik cone crusher S2800/3800/4800/6800 series
產品規格
series high manganese steel wear resisting concave and liner, have advantages as
long service life, reliable quality and favorable price.
Shunda Heavy Industry Machinery Co.,Ltd specialized in processing all kinds of
high manganese steel parts, mainly including high manganese jaw crusher jaw plate,
jaw crusher liner plate, cone crusher broken walls, cone crusher rolling ace
tabular wall, ball mill liner plate, excavator relieving tooth, excavator bucket,
excavator liner plate and other mining machinery manganese parts, can process
according to supplied drawing.
|
Drawing No. |
Crusher model |
Description |
Weight |
|
442.8464-00 |
S2800 |
Concave Ring，Lower EC M1 |
270 |
|
442.9288-01 |
S2800 |
Mantle A M1 |
478 |
|
442.6789-01 |
S2800 |
Mantle B M1 |
407 |
|
442.8470-01 |
S3800 |
Mantle A M1 |
795.00 |
|
442.8484-90 |
S3800 |
Concave，Upper EC M2 |
77 |
|
442.8485-00 |
S3800 |
Concave，Upper C M1 |
105 |
|
442.8477-00 |
S3800 |
Concave Ring，Lower EC M1 |
512.00 |
|
442.8478-00 |
S3800 |
Concave Ring，Lower C |
465.00 |
|
442.8471-01 |
S3800 |
Sandvik Mantle B M1 |
655.00 |
|
442.8478-90 |
S3800 |
Concave Ring，Lower C |
465.00 |
|
452.1464-90 |
S3800 |
Concave-ring mc |
547 |
|
452.1465-90 |
S3800 |
Concave-ring mc |
98 |
|
442.8070-01 |
S4800 |
Mantle B M1 |
1,010.00 |
|
442.8089-01 |
S4800 |
Mantle A M1 |
1,271.00 |
|
442.8098-00 |
S4800 |
Concave Ring, Lower C M1 |
860.00 |
|
442.8099-00 |
S4800 |
Concave, Upper C M1 |
105 |
|
442.8114-00 |
S4800 |
Concave Ring, Lower EC M1 |
950.00 |
|
452.0273-901 |
S4800 |
Concave Ring, Lower MC M1 |
860.00 |
|
442.8115-00 |
S4800 |
Concave, Upper EC M1 |
90 |
|
452.0274-901 |
S4800 |
Concave, Upper MC M1 |
123 |
|
442.8982-01 |
S6800 |
Mantle A M1 |
2,004.00 |
|
442.8983-01 |
S6800 |
Mantle B M1 |
1,915.00 |
|
442.9071-90 |
S6800 |
Concave Ring, Lower C M2 |
1,801.00 |
|
442.8979-00 |
S6800 |
Concave Ring, Lower EC M1 |
1,740.00 |
|
442.9072-00 |
S6800 |
Concave, Upper C M1 |
1,775.00 |
