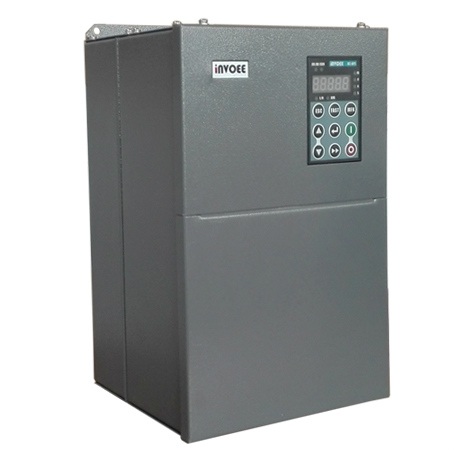

VC610 9.0kw Frequency Converter For CNC Lathe
產品型號：VC610-4T0090G
產品分類：自動化設備/產業機械 / 自動化設備 / 自動化控制系統
產品特色
VC610 frequency converter has the following function:
1. Super low speed & large torque.
2. Super fast start /stop.
3. Stable rotating speed.
4. Stepless speed change.
vector control
產品規格
Main parameter of VC610 9.0kw cnc frequency changer for CNC lathe:
-
Item: VC610-4T0090G
-
Control style: vector
-
Matched motor power: 9.0kw
-
Input frequency and voltage:380~440V,50/60Hz
-
Output frequency: 0.00~650.00Hz
-
Output voltage:0~input voltage
-
Rated output current: 20A
-
Guarantee: 3 years
-
General specifications for CNC spindle frequency changer
|
Items |
Description |
|
|
Input |
Rated frequency and voltage |
Three-phase: 380~440V, 50/60Hz; three-phase/single-phase: 220~240V, 50/60Hz |
|
Operating range of voltage and frequency |
Voltage: ±20%; frequency: ±5% |
|
|
Output |
Voltage |
0~input voltage |
|
Frequency |
0.00~650.00Hz |
|
|
Over-load capacity |
1min at 150% of the rated current and 1s at 200% of the rated current |
|
