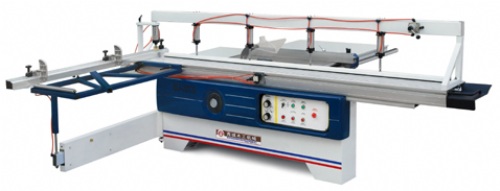

裁板機/推台鋸
產品型號：MJ6132YA
產品特色
★Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
★Movable table guide track is plating chromium steel balls structure, exact and durable.
★Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.
★With oxidation treatment, movable table surface is beautiful and hardwearing.
產品規格
Max cutting length: 3200mm
Max lengthways cutting width: 1250mm
Max/Working height: 70mm
Tilt angle: 0 deg. -45 deg.
Cutter blade specification: (250-300)*30mm
The non-load rotary speed: 5000r. P. M
Scriber specification: 120*20mm
Non-load speed: 8000r. P. M
The main motor power: 4.75kw 380v
Weight: ~1300kg.
