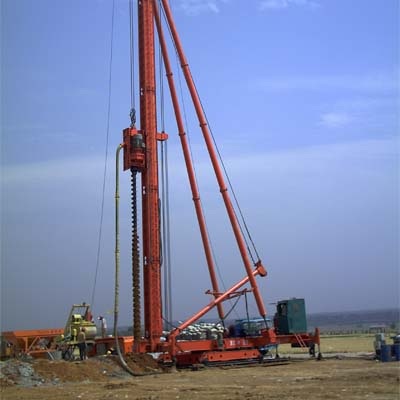

The series CFG driller is suitable for CFG pile. It has many advantages; low noise,Website:http://www.zzpiling.com, without contamination, no vibration when pore-forming, little influence to adjacent piles and it can penetrate hard pan, and sand layer, gravel layer and cobble layer with its diameter less than 60mm.The series CFG consists of two parts,the pile-driving frame and the drilling system.The drilling system adopts the national patent techniquetri-circle speed reducer which features high bearing capacity and reliability.Equipped with swivel joints, the output axis and the auger stem are hollow inside,which allows long spiral processing and super-fluidity construction.During operation,no vibration,noise or pollution arises,which brings a high rate.The CFG series is the ideal equipment for civil and industrial construction.ModelCFG20CFG25CFG30CFG35Bore diameter (mm)400-600400-600400-800400-1000Bore depth (m)20252935Rotation speed (r/min)30.521.321.313.9Power head (kw)37?245?255?275?2Rotation torque (kn/m)25.435.944.367Walk methodPedrail TypeRotation angle180簞Adjustable range of mastAside 2簞front 9簞back 3簞Gradient2簞Packaging & ShippingDelivery it without package and some parts should be packaged in wooden case.JZB120 walking pile-driving frame with CFG30 works on large tank project in Iraq.The second set of JZB120 walking pile-driving frame with CFG30 works on large tank project in Iraq.JZB90 walking pile-driving frame with CFG30 works in China.JZB50 walking pile-driving frame with CFG20 works in China.
