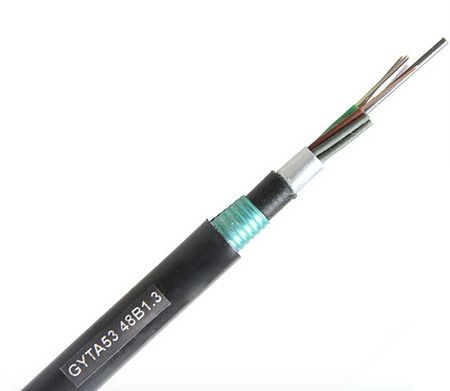

GYTA53 Outdoor Direct Buried Steel Tape Armoured Double Sheath Fiber Optic Cable
產品型號:Model
產品特色
GYTA53 Outdoor Direct Buried Steel Tape Armoured Double Sheath Fiber Optic Cable,Direct Burial Fiber Optic Cable
產品規格
As one of the leading gyta53 outdoor direct buried steel tape armoured double sheath fiber optic cable manufacturers and suppliers in China,Website:http://www.tieyingofc.com, Tieying Optoelectronic is waiting for to buy low price and customized double sheath fiber optic cable made in China from its factory. GYTA53 outdoor directly buried steel tape armoured fiber optic cable PLACE OF ORIGIN: Zhejiang, China? Brand Name: OEM Model Number: GYTA53 Fiber Number: 4~288 Tape: Steel-plastic laminated Installation Application: Direct buried Packaging & Delivery:? Packaging Details: Packed on drums, which is fumigated, or non-fumigated, iron-wooden drums; Drums length: 2KM, 3km or 4km, as per buyers??request Delivery detail: 15 days Product Description: GYTA53 is an outdoor communication optical cable of metallic strength member of the loose tube jelly-filled structure, with Al-polyethylene laminated sheath longitudinally covered with corrugated steel-tape armored polyethylene outer sheath. ??Features Full cross-section water-blocking structure to ensure good water blocking and moisture resistance Loose tube is filled with special ointment for a key fiber protection The phosphate wire center stiffening member is of high modulus and corrosion resistance. Double-sided vertically-clad corrugated steel-tape armor effectively improves the resistance to lateral pressure Product life of 30 years ??Performance Indicators? Applications: Suitable for long-distance communication and indoor communication Way of laying: Direct burial, pipeline Operating temperature: -40 ~ + 70 ?? Bend radius: Static 12.5x cable diameter Dynamic 25x cable diameter ??Specifications? Number of cores Number of cable cores Maximum fiber cores in loose tube Cable diameter (mm) Cable weight (kg/km) Allowable tension (N) Allowable flattening force (N/100 mm) short long term short long term 2-30 32-60 62-72 74-84 86-96 98-120 122-144 5 5 6 7 8 10 12 6 12 12 12 12 12 12 12.9 13.4 14.1 15.4 15.4 17.2 19.0 160 175 204 245 245 285 334 ??000 ??000 ??000 ??000
