FTTH Drop Cable GJYXCH
產品型號:Model
產品特色
FTTH Drop Cable GJYXCH,Indoor Optical Fiber Cable
產品規格

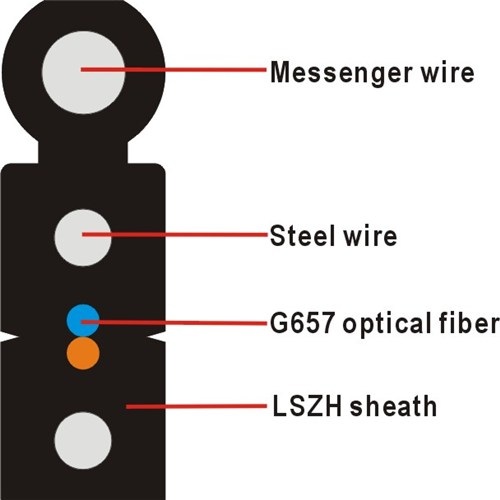

As one of the leading ftth drop cable gjyxch manufacturers and suppliers in China,Website:http://www.tieyingofc.com, Tieying Optoelectronic is waiting for to buy low price and customized bow-type drop cable made in China from its factory. GJYXCH G657A fiber LSZH sheath with 1.0mm messenger FTTH cable PLACE OF ORIGIN: Zhejiang, China? Brand Name: OEM Model Number: GJYXCH Fiber Number: 1~4 Strength member: STEEL WIRES Application: Indoor Packaging & Delivery:? Packaging Details: Packed on drums, which is fumigated; Drums length: 2KM, 3km or 4km, as per buyers??request Delivery detail: 15 days FTTH Drop Cable The optical fiber unit is positioned in the centre. The parallel fiber reinforced plastics (FRP) or 2pcs steel wire are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath. Characteristics: 1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. 2.Two parallel FRP ensure good performance of crush resistance to protect the fiber. 3.Single steel wire as the additional member ensure good performance of tensile strength 4.Simple structure, light weight and high practicability 5.Novel flute design, easily strip and splice, simplify the installation and maintenance 6.Low Smoke, Zero Halogen and flame retardant sheath., Technical Advantages & Application: 1.Access network, fiber to the home. 2.Support the internet, CATV and telephone 3.High bandwidth, easily reach 100M 4.Flexible network construction, reduce the cost of installation and maintenance, convenient for network management. 5.Usable equipment ports, easy to increase the user and expand accommodates gradually. 6.Support more network increase service in future. Technical parameter Fiber Number Diameter(mm) Weight(kg/km) minimum bend radius(mm) Tensile Strength (N) Crush Resistance(N/100mm) Static Dynamic Short-term Long-term Short-term Long-term 1~4 (2.0簣 ? 0.1?(5.0簣0.1) 10.5 10 20 300 600 1000 2200 1~4 (2.0簣0.1)?(5.2簣0.1) 10.5 10 20 300 600 1000 2200
