程控液壓對擊錘
產品型號：CDKA
產品分類：自動化設備/產業機械 / 其他產業機械 / 鍛造機械
產品特色

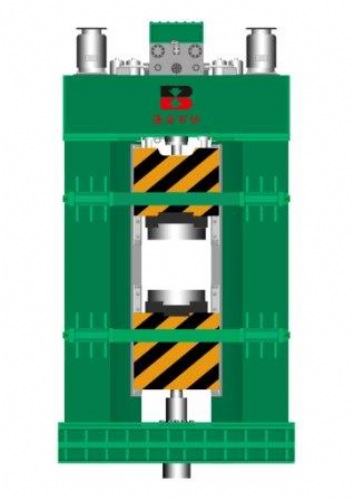

CDKA PLC hydraulic counterblow hammer
CDKA PLC hydraulic counterblow hammer adopts unique and up-to-date design, welding structure framework , counterblow system with equal weight and equal stroke ,advanced hydraulic driving system and PLC strike control system with man-machine interface.
Structure characteristics:
CDKA PLC hydraulic counterblow hammer’s counterblow system adopts welding framework, adjustable actinoid wide guide construction, which is especially suitable for precision forging. The clearance of guide rail can accurate to 0.2 mm. The upper and lower hammer tup relatively move with equal stroke and equal energy in the frame.
The weight ratio of upper and lower hammer tup is 1:1, linkage by a set of oil cylinder coupling in the frame. It realized counterblow in the midair under the drive of hydraulic system.
CDKA PLC hydraulic counterblow hammer’s hydraulic system was installed on the framework with elastic antivibration pad.
The hydraulic system adopts advanced taper cone valve control technic, combination cylinder transmission technology, double anti-leak technic and hydraulic integration technic to realize fewer pipe connection of main oil circuit. So the system structure is greatly simple.
CDKA PLC hydraulic counterblow hammer’s striking control system can realize man-machine conversation and display the working statues and malfunctions through the touch screen as well as control the striking energy and striking programable through PLC
Performance and feature
A. High energy-saving
B. high accuracy
C. Less or no vibration
D. Fewer investment
E. Lower using cost
產品規格
程控液压对击锤
