產品規格

  Products Specification:
If you are looking for shaking table China from best shaking table, shaker, table concentrator suppliers, please feel free to contact Jinyuan Mining Machinery.

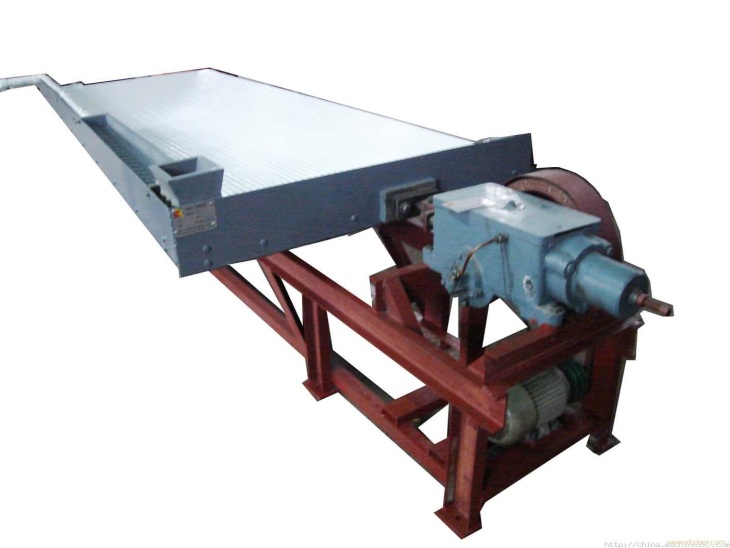

Specifictions of YC(s) Shaking table
Model
Bed  size
mm
L×width of feeding end×width of concentrate end
Stroke
mm
Times of stroke
r/min
ㄗ°ㄘ
Cross slope
mm
Feed  particle
Water consumption
t/h
Capacity t/h
Motor
Weight
kg
Mineral sand
Mineral slime
Model
Power
kw
Mineral sand
Mineral slime
YC(S)-3000×1320
3000×1320×1100
6~30
210~320
0~10
-2
-0.1
0.3~1.5
0.7~1.5
0.4~1.0
Y100L-6
1.5
650
YC(S)-2100×1050
2100×1050×850
12~28
250~450
0~8
-2
-0.074
0.2~1.0
0.4~0.8
0.3~0.5
Y90L-6
1.1
450
YC(S)-1100×500
1100×500×430
9~17
280~460
0~10
-2
-0.074
0.1~0.5
0.1~0.2
0.05~0.1
Y80L-4
0.55
150
Specifictions of 6-S Shaking table
Bed  size
mm
L×width of feeding end×width of concentrate end
mm
Stroke
r/min
Times of stroker
(°)
Cross slope
Mineral sand
Mineral slime
Mineral sand
Mineral slime
4520×1825×1560
10~36
8~20
220~280
310~340
0~10
mm
Feed particle
Water consumption
L/min
t/h
Capacity

Weight
kg
Model
kw
Power
<3
19~75
15~108
Y90S-4
1.1
990
