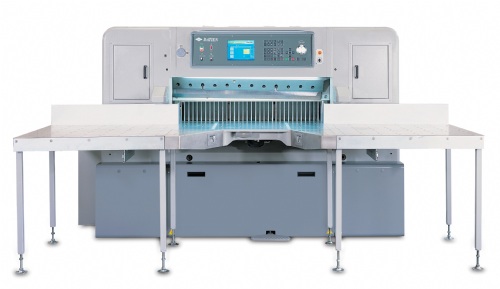

微電腦裁紙機
產品型號：CT-300E
產品分類：自動化設備/產業機械 / 造紙機械 / 紙加工設備
產品特色
This DATIEN Cutting System is to give ideally smooth workflows for Printing company, Silk-screen printers, Label producers, Bookbinderies and Converters.
Double arm cutting action driven by worm gears for each arm.
Two hand simultaneous press-button cutting control for safe operation, complied with infra-red electric eye safety detection.
Servo motor driven back-gauge to ensure quick movement and precise positioning, Locating accuracy of the back-gauge +/- 0.01, total tolerance 0.02 mm.
Large memory capacity for 200 courses x 99 pages
Air-cushioned electroplated working table.
產品規格
Model CT-115E CT-137E CT-300E
Design Specifications mm mm mm
Cutting width 1150 1370 3000
Cutting Height 165 165 165
Cutting Length 1150 1370 3000
Front Table Length 750 750 750
Table Height 900 900 900
Smallest cut with clamp 90 90 120
Smallest cut without clamp 30 30 40
Cutting cycle per minute 48 48 36
Clamp pressure (kg) 400–4000 400–4000 400–6000
Machine Weight 4100 kg 4500 kg 11500 kg
Power requirement 6.85 kw 7.35 kw 24.5 kw
