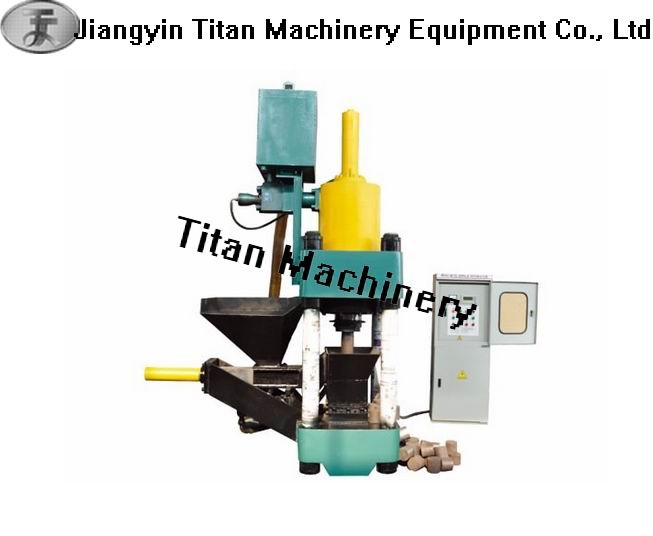

aluminum metal chips briquetting machine
產品型號：Y83-3150
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 鋁箔等金屬材料
產品特色
email:[email protected]
whatsapp/viber:+8615861642990
skype:alexling2233
Y83 series briquetting presses (also called metal shavings compressor) can cold press the scrap iron, steel, aluminum and other metals into cylindrical briquettes with the density of about 5-6 ton per square meter and the briquettes are able to be directly melt for reproducing. The machine can help you to reduce the loss when reproduce the burning loss in smelting so to make recycling and smelting easier and convenient, and the briquette can substitue the pig iron as raw material directly. We offer you totally 9 different types with different working force from 150 tons to 630 tons.
產品規格
Quick Details
Place of Origin: China (Mainland)
Brand Name: Titan
Model Number: Y83-3150
Nominal force: 3150 KN
Briquette size: Dia 90~110 mm
Power: 30 KW
Briquette density: >5 ton/m3
Briquette frequency: 4~6 briquettes/min
1 fluid drive system
2 smart design & solid structure
3 handy operation panel
4 various types 200-630T
5 customize service
Technical parameters
|
Nominal force (kn): |
3150 kn |
|
Machine size (mm) : |
Main machine: 2150*800*3300 Oil box: 1900*1300*1650 |
|
Briquette size (mm): |
Φ 90~110 mm |
|
Briquette density (ton/m3) : |
≥ 5 ton/m3 |
|
Briquette frequency |
5 pcs/min |
|
Briquette weight (kg) |
3~4 kg |
|
Power (kw): |
30 kw |
|
Nominal pressure: |
20 Mpa |
|
Operation: |
Manual/Automatic |
|
Output per shift: |
7~10 t/shift (8 hours) |
