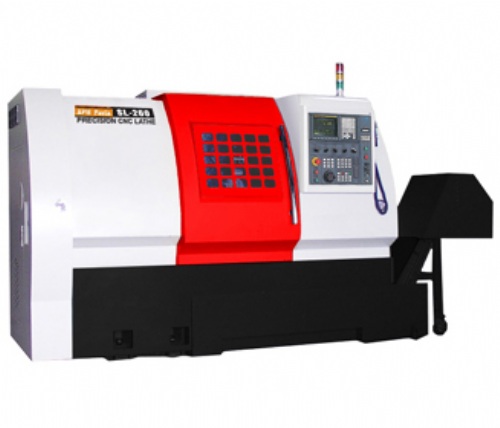

CNC斜背車床
產品型號：SL-166/ 208/ 258/ 260
產品特色
45 D Slant Bed One-Piece Strong Structure
Box-Way Heavy-Cut Vibration Absorbing
6”/ 8’/ 10’ Chuck
A2-5(Ball)/ A2-6/ A2-8(Roller) Spindle
Hydro/ Servo Turret
產品規格
Chuck: 6”x6000rpm/ 8”x4200rpm/ 10”x3500rpm
Turret: □20x12/ □25x10/8 Hydro/ Servo
Tail Stock: D80 x MT4 Hydro
Swing over Bed: 450/500/510/535 mm
Turing Length: 400/ 400/ 600/ 600 mm
Turing Diameter: 280/ 300/ 310/ 330 mm
Through Hole: 56/ 61 /61 /90 mm
