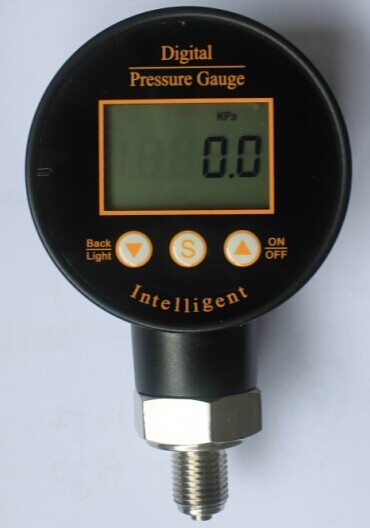

Digital Waterproof pressure Gauge
產品型號：PM-3000
產品分類：自動化設備/產業機械 / 檢測設備 / 量規
產品特色
Features：
4-digit number LCD display ,Low power consumption,no extrnal power supply;
Using microprocessor,Long battery life;
Optional pressure unit;
Can be customized according to customer requirements;
Zero point adjustment through the panel;
Can set shutdown automatically or manually;
A peak holding and low voltage alarm function;
As a standard calibration equipment;
產品規格
Applications
The oil industry, chemical industry,Electric power;
Hydraulic pressure system,Pneumatic system;
Energy and Water treatment system;
Automation equipment;
Industrial process control.
Performance parameters
Pressure range : -0.1~250MPa
Pressure mode : Gauge Pressure、absolute pressure
Output signal : Optional ( Analogue signal or Digital signal )
Display mode : 4-digit number LED(Set Value/Actual Value)
Accuracy(%FS) : 0.1 0.25 0.5
Nonlinearity(%FS) : ≤0.1 ≤0.25 ≤0.5
Hysteresis(%FS) : ≤0.1 ≤0.25 ≤0.5
Repeatability(%FS): ≤0.1 ≤0.25 ≤0.5
Zero drift (%FS/℃): ≤0.02
Temperature drift(%FS)≤0.02
Stability (%FS/Year): ≤0.25
Working voltage(V) : 12~36V DC(Standard：24V)
Working temperature(℃): -20~85℃
Overload capacity(%): 300
Life span: more than 9 million times pressure cycle
Relay load capacity: 30V/5A DC 240V/3A AC
Response time (ms): 10
Measurement of medium: Mediums compatible with 316L
Diaphragm material: 316L or the ceramic diaphragm
Housing material : 1Cr18Ni9Ti or aluminum alloy
Pressure interface: M20*1.5,G1/2,G1/4,1/4NPT or others
Protection grade: IP65
Weight : 320g
