y83- 2000 hydraulic metal sawdust briquetting machine
產品型號:Y83-2000
產品分類:自動化設備/產業機械 / 其他產業機械 / 金屬冶煉加工設備
產品特色
1 fluid drive system
2 smart design & solid structure
3 handy operation panel
4 various types 200-630T
5 customize service
產品規格
1, Product listing:

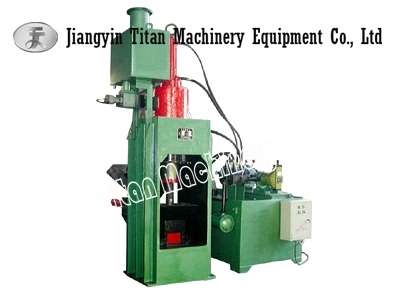

Hydraulic scrap metal briquetting press Y83-2000
2, Application
Y83 series briquetting press can cold press the scrap iron, steel, aluminum and other metals into cylindrical briquettes with the density of about 5-6 ton per square meter and the briquettes are able to be directly melted for reproduction. The machine can help you to reduce the loss when reproduce the burning loss in smelting so to make recycling and smelting easier and convenient, and the briquette can substitute the pig iron as raw material directly. We offer you totally 9 different types with different working force from 200 tons to 630 tons.
3, Features:
a, Fluid drive endows Y83 series with small size, light weight, low noise, high efficiency and many other advantages comparing to traditional mechanical drive.
b, Y83 provides option of auto and manual operation system. The tandem hydraulic cylinders increases the work speed and improves the production output.
c, Y83 series is designed and produced of a monothlic casting steel and this improves the stablability and lengthen the machine life.
d, The electrical part adopts imported PLC automatic control system which can reduce the malfunction ratio.
e, Y83 is widely used in different fields including scrap metal recycling industry and steel factory offering you qualified products.
4, Technical parameters:
Nominal force |
2000 KN |
Machine size |
Main machine:2100*650*2100Oil box:1100*1100*700 |
Briquette size |
Φ 70~90 mm |
Briquette density |
≥ 5 ton/m3 |
Briquette frequency |
5 pcs/min |
Briquette weight |
1.5~2.7 kg/pc |
Power |
18.5 kw |
Nominal pressure |
20 Mpa |
Operation |
Manual/Automatic |
Output per shift (8 hours standard) |
3.5~6.5 t/shift (8 hours) |
5, ISO 9001:2008 Quality Management System
