CNC Router with Automatic Tool Changer Mechanism ATC1325ADY

放大圖片

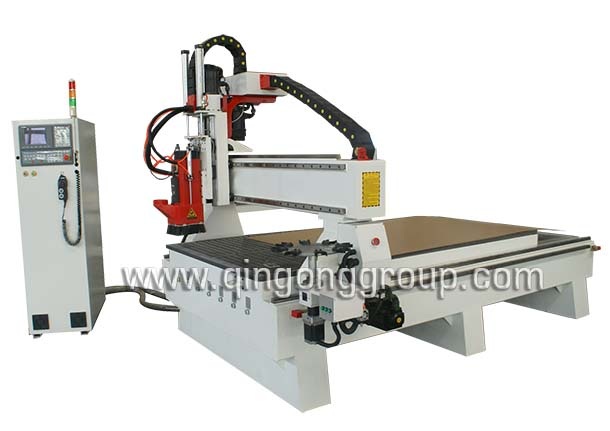

CNC Router with Automatic Tool Changer Mechanism ATC1325ADY

產品型號：ATC1325ADY

產品分類：木工產業機械 / 銑槽機 / CNC鉋花機

立即線上詢問

產品特色

1. Circle style automated tool changer with 8 pieces of tools in total. Changing the tool only needs 8 seconds. Disc tool magazine move with Y axis.
2. Adopt Italy-made air-cooled auto tool change spindle with strong power of 9.0KW, the machine can keep working for long-time without fault.
3. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost. Z axis adopts Taiwan-made TBI ball-screw and Taiwan Hiwin H30 square orbit, with high precision and longevity.
4. Excellent compatibility: CAD/CAM designing software eg. Type 3/ Artcam/ Castmate/ Wentai etc.
5. Gantry is made of heavy square steel tube, unlike others who adopt aluminum materials. Steel gantry has better stability than aluminum ones.
6. Advanced Taiwan SYNTEC control system with separate keyboard and color LCD screen makes the operation easier, and the auto tool change system makes the operation safer and convenient.
7. Adopting high-torque Japan YASKAWA servo motor and driver, greater accuracy and stability.
8. Manual oil-injection system makes the maintenance more convenient.
9. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 230 cube meters /hour.
10. Has the function of re-carving after break point and power failure.
11. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as Mastercam, Type3, Artcam, Unigraphics, etc).

產品規格

CNC Router with Automatic Tool Changer Mechanism
Model: ATC1325ADY

This cnc router is a great all-rounder and can tackle almost any routing job! It’s the perfect machine for Nested Based Manufacturing, shopfitting, sign manufacturing, general woodworking, plastics, or parts fabrication. With auto tool changer mechanism, can change one tool within 8 seconds.

Applications:

1. The model is a professional and efficient woodworking engraving machine, it suitable for large-volume, Joint processing of multi-model tool. Can be applied to furniture industry, solid wood furniture, solid wood doors, decorative materials, cabinet doors, computer tables, panel furniture, office furniture, wood Furniture industry, wood door, cabinets, kitchen, Chairs, decoration business, solid wood doors, Mould industry, wood panel, wave board processing, screen, calligraphy tablet design, relief, PVC and MDF sheet carving, Speaker system, kitchen utensils, and other wooden furniture processing, Timber/HMR cutting.

2. With the rotary axis, the machine also can do 3D engraving. Such as arts and crafts making, wooden pen holder engraving, bamboo and gift boxes engraving, handrails and railings engraving, table legs and bed legs engraving and so on.

Parameters:

Description	Parameter
X,Y, Z working area	13002500250mm
Table size	1330*3640mm
X, Y, Z travel positioning accuracy	±0.03mm
X,Y, Z repositioning positioning accuracy	±0.03mm
Table surface	Vacuum and T-slot combined
Frame	Steel tube structure
Drive system X-Y axis	Rack and Pinion Drive, Hiwin Linear Rail
Drive system Z axis	Taiwan TBI Ball Screw, Hiwin Linear Rail
Max power consumption	4.5kw(without spindle)
Max idle speed	60000mm/min
Max working speed	30000mm/min
Spindle power	9kw
Spindle speed	0-24000rmp
Working motor	Servo Yaskawa
Reducer	Taiwan planet
Disc tool magazine	8 tool stations
Working voltage	AC380V/50/60Hz,3PH
Command language	G code
Interface	CF card
Operating system	Syntec control system
Software	Type3, UcancameV9, Artcam
Running	Temperature:0 degree-45 degree
Paking size	375022502100mm
Net weight	1700KG
Gross weight	1800KG

Rotary axis optional.

From Qingong CNC
