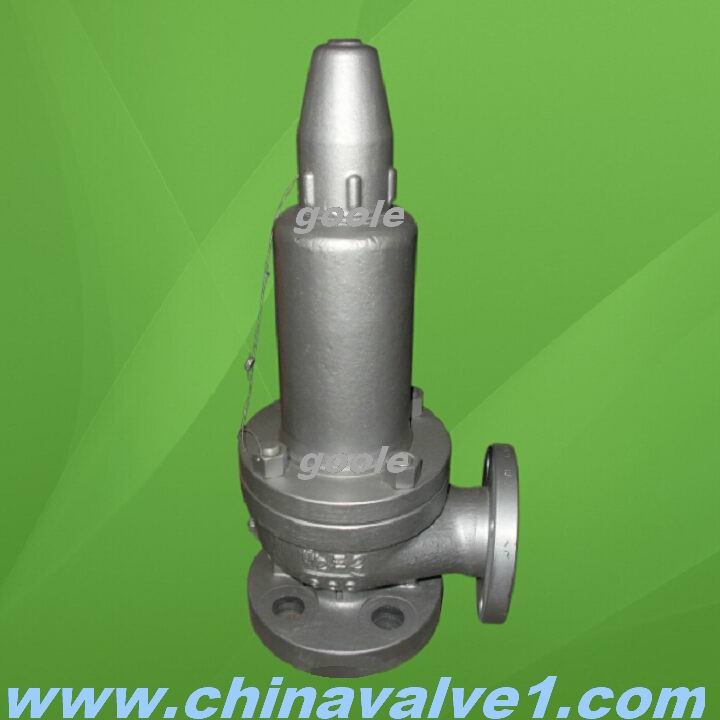

A42 spring loaded full lift type safety valve
產品型號:A42
產品分類:自動化設備/產業機械 / 其他產業機械 / 閥類
產品特色
A42Y-C A42H / Y Spring Loaded Full Lift Safety Valve are used for the equipment and pipeline of the air,petroleum gas, liquid etc.
產品規格
A42Y-C type safety valve are used for the equipment and pipeline of the air, petroleum gas, liquid etc medium what the working temperature are less than 300℃.
A42Y-P type and A42Y-R type are used for the equipment and pipeline of the quality with corrode medium what the working temperature are less than 200℃.Take for extra pressure protection devices.
A42H / Y Spring Loaded Full Lift Safety Valve Maint Parts Material
No |
Parts Name |
A42H-C/ A42Y- C Material |
A41Y--P/ A42Y-P Material |
A41Y--R / A42Y-R Material |
1 |
Body |
wcb |
1cr18ni9ti |
1cr18ni12mo2ti |
2 |
Seat |
2cr13/1cr18ni9ti |
1cr18ni9ti |
1cr18ni12mo2ti |
3 |
Adjusting Ring |
2cr13/1cr18ni9ti |
1cr18ni9ti |
1cr18ni12mo2ti |
4 |
Disc |
2cr13/1cr18ni9ti |
1cr18ni9ti |
1cr18ni12mo2ti |
5 |
Guide |
2cr13/1cr18ni9ti |
1cr18ni9ti |
1cr18ni12mo2ti |
6 |
Bonnet |
zg230-450 |
230-450 |
230-450 |
7 |
Spring |
50crva |
50crva |
50crva |
8 |
Stem |
2cr13 |
2cr13 |
1cr18ni12mo2ti |
9 |
Adjusting Bolt |
45 |
2cr13 |
2cr13 |
10 |
Cap |
200-400 |
200-400 |
200-400 |
|
Sealing |
D507 |
Stellite 6 |
Other Information:
Tel: + 86-577-57781015
Fax: +86-0577-67985602
Email:
1. [email protected]
2. [email protected]
3. [email protected]
Website:
http://www.chinavalveworld.com/
Skype:fjxcathy
Payment:T/T
Delivery:FOB
Origin:China
Minimum Order:1
Package: plywood case
