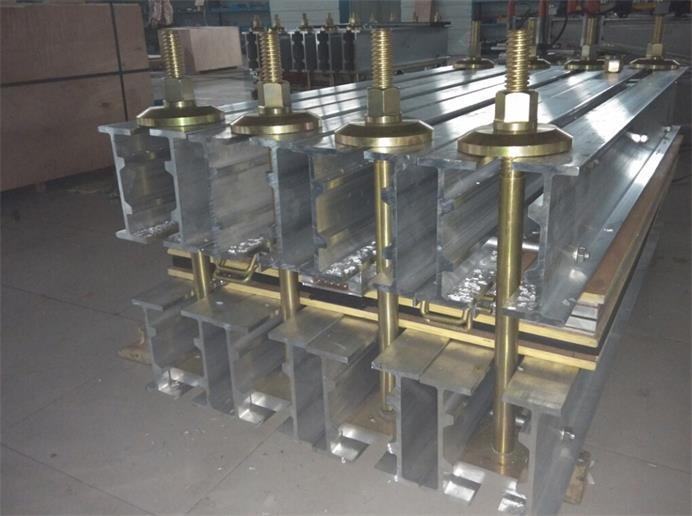

  The steel cord conveyor belt splicing machine is a dependable, lightweight, portable press, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, chemical industry, etc. Heating plates available in EP, rubber, Canvas, nylon and steel cord belt. Platens available in rhombic, rectangular or combined type (2 or more sets of heating plates) configurations.

Technical parameters

1. Vulcanizing pressure: ≤1.8Mpa;

2. Vulcanizing temperature: 145 °C;

3. Difference in surface temperature of vulcanized plate: ± 5 °C;

4. Warm up time (normal temperature to 145 °C): ≤30 mins;

5. Power supply voltage: 220V/380V/400V/415V/440V/660V, 50/60 Hz;

6. Temperature adjustment range: 0 to 200°C;

7. Timing adjustment range: 0 to 99 mins;
