SD-83 Synchronous Motor, SD-94 Reversible synchronous Motor
產品型號：SD-83 Synchronous Motor, SD-94 Reversible synchron
產品特色

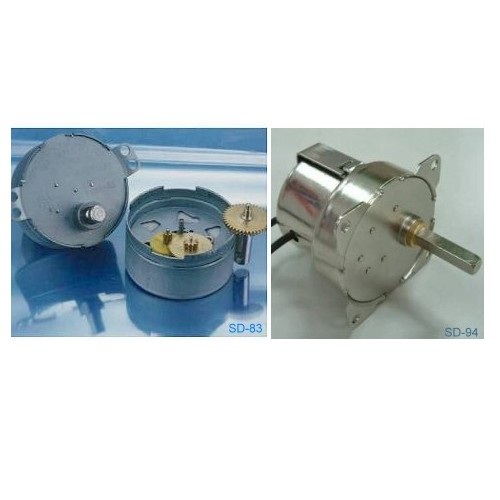

****SD- 83 Synchronous Motor
Special Features: Brass gear by Swiss "Mikron" hobbing machineSECC cover plate Low noise Low operating temperatureHigh torque
-----------------------------------------------------------------
***SD-94 Reversible synchronous Motor
SECC cover plate Nickel Steel Gears and Medium Carbon Steel GearsHi-Tech magnetic material-MQ Magnet (Nd-Fe-B)Low noiseLow operating temperatureHigh torque
產品規格
*** SD- 83 Synchronous Motor
Rated voltage: 12, 24, 100, 110-120, 220-240V , Power frequency: 50/60Hz ,
Input power: 3~4W Number of poles: 12P Rotor , speed: 500-600RPM
Output RPM: From 1 to 72 RPM , Torque: From 500gm/cm to 12kg/cm
Rotation: CW, CCW,CW/CCW (Free) , Operating temperature: -10o ~ 60o C
Insulation strength: AC1500V, 1 min.
Insulation class: A, B class
----------------------------------------------------------------
***SD-94 SD-94 Reversible synchronous Motor
Rated voltage: 24, 100, 110-120, 220-240 V, Power frequency: 50/60 Hz , Input power: 3~6W
Number of Poles: 12P, Rotor speed: 500- 600 RPM, Output RPM: From 1 to 99 RPM
Torque: From 18 to 60kg/cm (40kg/cm at 1 RPM) , Rotation: CW, CCW, Reversing, Bi-directional
Operating temperature: -10o ~ 60o C, Insulation strength: AC1500 V-1Min , Insulation class: A, B class L
