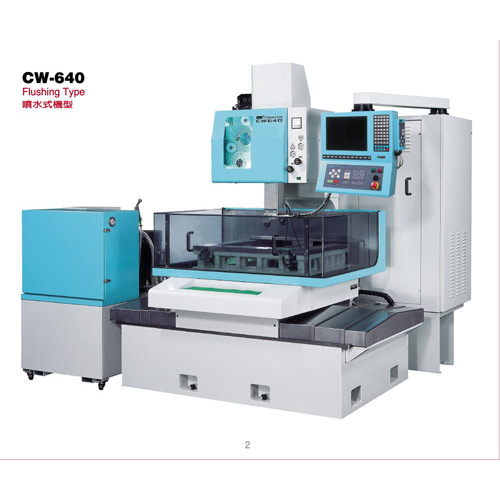

產品規格



外觀尺寸Machine dimensions 1800x1900x2400
最大工件尺寸Max. workpiece size 1200x700x320
最大工件重量Max. workpiece weight 1200 kg
XY 軸行程XY-axis trip 600x400
UV 軸行程UV-axis trip ±50×±50 mm
Z 軸行程Z-axis trip 300
使用線徑Wire diameter used Ø 0.10~0.30mm
線張力Wire tension 2~25 N
最大工件厚度Max. workpiece height 250mm
可同動軸數No. of axes for simultaneous control XYUV四軸同動
傳動系統Transmission system 5 軸, AC 伺服傳動
最大切割斜度Max. cut taper ±22.5°(工件厚度100 mm)
佔地面積Space occupied 3000×2300´2300
總重量Total weight 4850kg
水過濾系統Filter System
水過濾系統容量Filter system capacity 480liters
離子交換樹酯Ion exchange resin 5 liters 15 liters
水質控制Water quality control AUTO
水溫控制Water temperature control AUTO
加工電源Discharge Power Unit
放電電源Discharge power supply AC MOSFET
表面粗細度Surface roughness Ra0.25μm
超細加工回路Super fine power supply Standard
最大切割速度Max. cutting speed 180 mm2/mim
外部穩壓變壓器Outside voltage-regulating transformer 選配Optional
CNC裝置CNC Unit
控制器裝置Controller device 64-bit IPC
記憶體裝置Memory device 16 MB DOM
螢幕顯示裝置Scree n display device 10.4"/12.1"/15" 800x600 Color TFT
輸入方式Input means Keyboard, RS-232, 3.5" Floppy Disk
伺服御制方式Servo control loop 全閉式Full close loop
控制軸數No. of control axes 五軸5 axes
指令單位Instruction unit 0.001 mm
最大指令值Max. instruction value 9999.9999 mm
指令單位Instruction unit mm / INCH
外部電源需求Power Source Requirement
電力需求Electricity demand 3-phase, AC 220V ± 10% /30A
