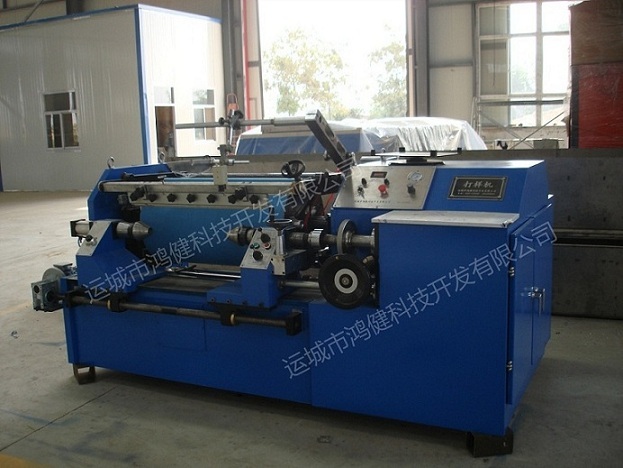

gravure proofing machine
產品型號:hj
產品特色
rotogravure cylinder making machinery
產品規格
Product name:Proofing machine
Used for gravure cylinder proofing line.
Two styles:English-style and Japanese-style
Suit for both Hollow and Shafted cylinder at different specification as customers'request.
About relevant technical problems,pls tell us your specific request,we will sent you support offer accordingly following.
Proofing machine is especially designed for rotogravure cylinders. The machine not only has the economical and practical features of Japanese style, but also changes the car-tridge movement from roller linear bearings to linear rail, it solves the non-synchronization problem of cartridge forwarding and backing of some patternmakers, particularly local patternmakers. The electrical improvement makes the operation more easier and effective
Features
High efficiency : highly integrated module enhance the automation, increasing the efficiency by 20%-30%.
High performance printing :the pressure between cartridge and roller, accumulator system has been improved greatly, making it possible for more than 5% dotting to print.
The adjustment of cartridge stroke, open & close of tail parts can be controlled automatically. And the cartridge and roller is kept in the same horizontal line, preventing the swing problem.
Technical Parameters
Cylinder length |
320-1300mm |
Cylinder diameter |
100-350mm |
Net Printing Effect |
More than 5% |
Size |
3450mm x 1825mm x 1200mm |
Weight |
4500kg |
Needed consumanles:
1.doctor blade,etc.
2.clamping materials:copper jointing,adaptor,cone,F4,rubber sealed circle,screw nut,gear,etc.
Kindly sent us your comsumable usual required specific request list with needed quantity,we will sent our offer for your consideration in toghether.
We could provide technical engineer to your place for install machine and give technical support for you.
If any question, plz contact Daphne.
Email:[email protected]
Mobile phone:86 18835921017
